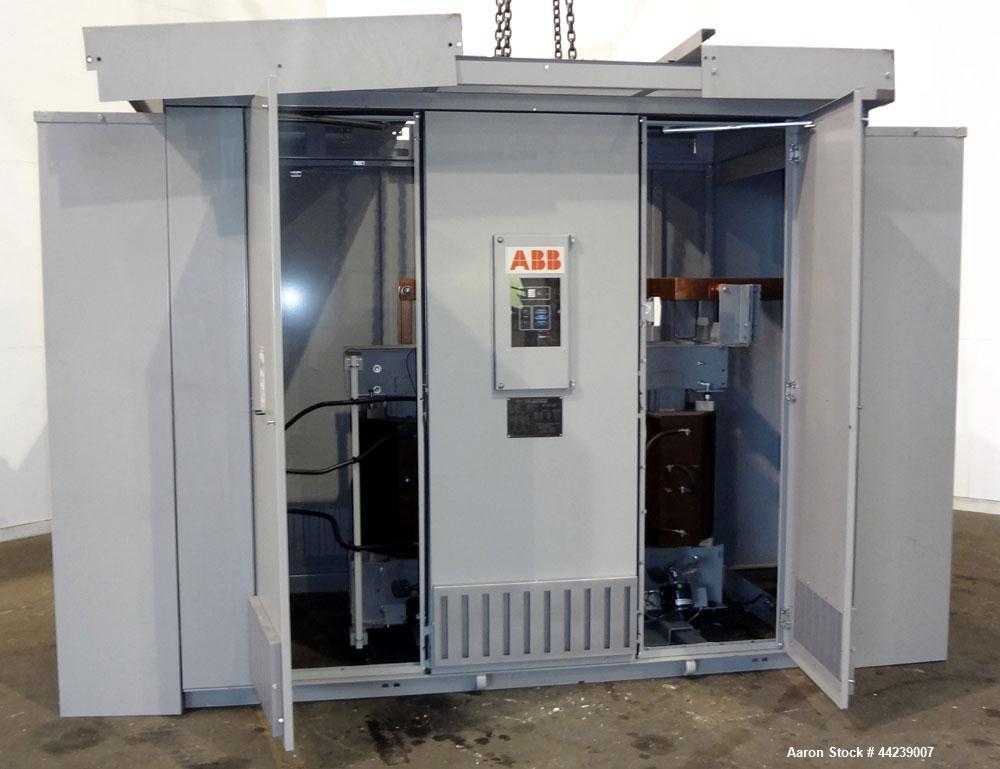

ABB Dry Type Transformer 100 kVA 66kV/33kV

An ABB Dry Type Transformer rated at 100 kVA with a voltage of 66 kV/33 kV is a maintenance-friendly, eco-friendly power distribution transformer suitable for areas where oil-filled units cannot be used due to fire risk or contamination concerns.

Key Description

• Rated Power: 100 kVA.

• Voltage Class: Typically available up to 36 kV primary for standard dry-type designs, though advanced solutions now approach higher voltages up to 66 kV or more for sub-transmission use.

• Type: Dry Type Transformer—uses solid resin or cast insulation, eliminating oil to prevent fire and environmental hazards.

• Configuration: Three-phase, often configured as Dyn11 (Delta/Y grounded neutral).

• Frequency: 50 Hz standard.
