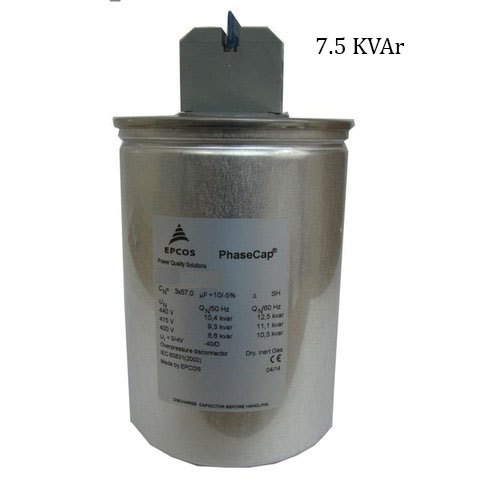

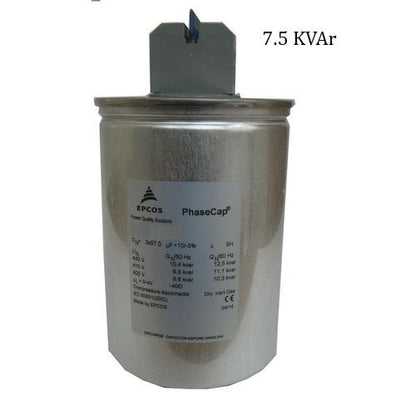

The Epcos PhaseCap Energy Capacitor with a rating of 7.5 kVAR has the following key specifications and features:
-
Reactive Power Output: 7.5 kVAR at 50 Hz; approximately 9 kVAR at 60 Hz.
-
Rated Voltage: Commonly available in 230 V AC and 440 V AC versions, with 440 V AC being a typical industrial voltage.
-
Capacitance: Around 150 μF for 230 V version and about 41 μF for the 440 V version.
-
Technology: Uses MKK polypropylene film with special wave-cut film technology for reduced losses and increased inrush current withstand capability.
-

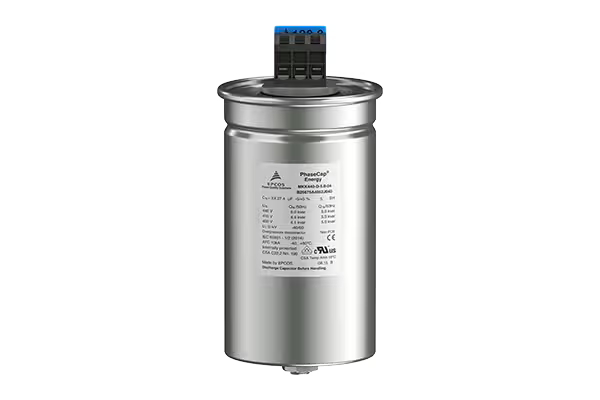

Construction: Cylindrical round aluminum housing with stud for easy mounting.
-
Life Expectancy: Up to 200,000 hours depending on temperature class.
-
Safety Features: Equipped with self-healing properties, a three-phase overpressure disconnector, and discharge resistor.
