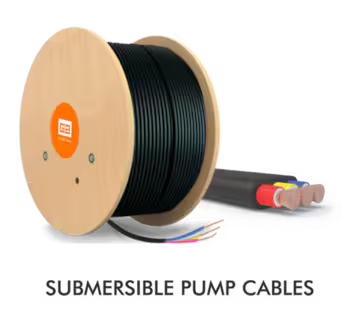

Goldmedal SUBMERSIBLE 3 CORE FLAT CABLE

GOLDMEDAL offers a Three Core Flat Flexible Industrial Cable for Submersible Pump Motors designed specifically for 1100V voltage grade applications. Key specifications include:

• Conductor Material: Nicely bunched, high purity bright electrolytic copper, plain annealed for superb flexibility, complying with class 5 conductor standards (IS:8130).

• Construction: Flat cable with flexible copper conductor cores, insulated individually with PVC and overall PVC black sheath.

• Core Count: 3 cores with color coding (Red, Yellow, Blue).

• Sizes Available: Typically ranging from 1.0 sqmm to 4.0 sqmm and extended sizes as per requirement.

• Voltage Rating: Up to 1100 V AC.

• Applications: This cable is suitable for submersible pump motors and other industrial uses requiring flexible, water-resistant, and durable cabling.

• Standards: Manufactured to meet harmonized grades HO5V-K, HO7V-K, and Indian standard IS dimensions.

• Packaging: Usually supplied in drums with standard lengths of 500 meters (+5% tolerance), and options for 100m lengths upon request.

• Additional Options: Special insulation and sheathing like halogen-free are available on special order.
