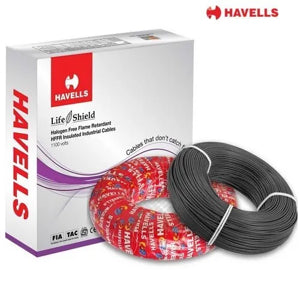

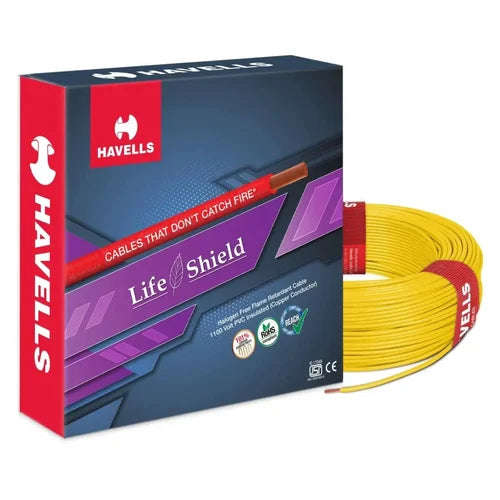

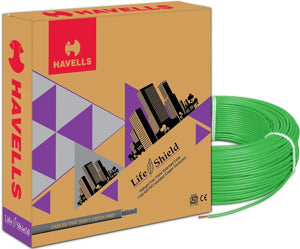

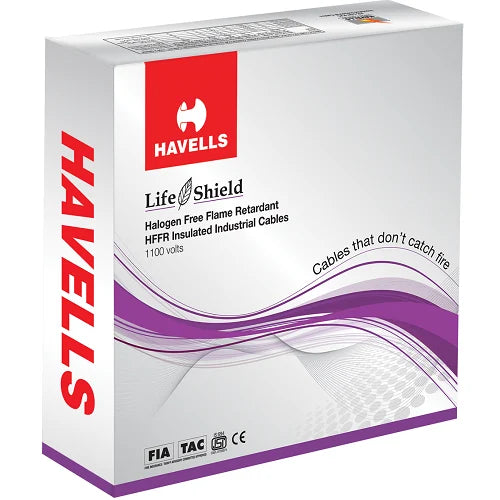

Havells Life Shield HFFR Cables 2.5 sq. mm (90 MTR )

The Havells Life Shield HFFR Cable 2.5 sq. mm (90 MTR) is a single-core flexible copper cable insulated with Halogen-Free Flame Retardant (HFFR) polymer, offering high fire safety, low toxic emissions, and environmental protection. It is designed for internal wiring in residential, commercial, and industrial environments requiring superior fire safety and human protection.

Key Specifications:

• Brand: Havells

• Model: Life Shield HFFR

• Conductor: Annealed bare copper, class 5 flexibility with 36 strands of 0.3 mm

• Cross Section: 2.5 sq. mm

• Voltage Rating: Suitable for 1100 V

• Outer Diameter: Approximately 3.6 mm

• Current Carrying Capacity: About 23-26 A (single-phase)

• Conductor Resistance: Approximately 7.41 Ω/km at 20°C

• Insulation: Halogen-Free Flame Retardant polymer, IS:694 compliant, with high oxygen index (~30%) ensuring combustion only in oxygen concentrations above atmospheric levels

• Low Smoke Emission: Emits very low smoke compared to conventional PVC cables, facilitating better visibility and safety in fire

• Non-Toxic: Releases minimal toxic gases during combustion, aiding safer evacuation

• Heat Resistance: Insulation can withstand temperatures up to 280°C, compared to typical PVC cables rated for 85°C

• Environmentally Friendly: No harmful halogen release, protecting the ozone layer and reducing greenhouse impact
