Current ratings: Common values are 10A, 15A, 20A, 25A, and 30A, matching typical PV string and module requirements.
-
Voltage rating: Most models are rated up to 1000V DC, compatible with modern PV arrays and combiner boxes.
-

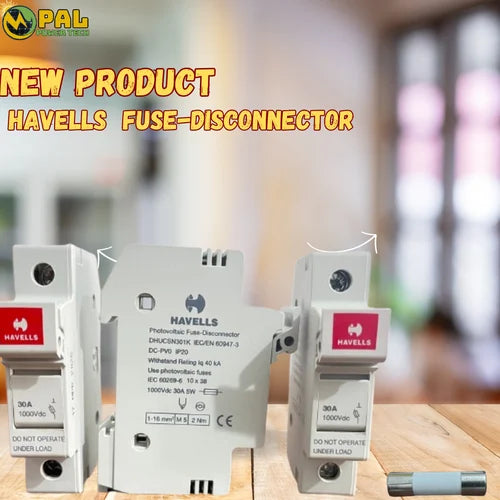

Type: Cylindrical/cartridge fuses are prevalent for PV use (commonly 10x38mm size, suitable for fuse holders).
-
Breaking capacity: High interrupt rating to handle sizable DC fault currents.
-
Compliance: Adheres to IS/IEC 60269-6 for photovoltaic fuse-links.
-
Fuse rating should typically be 1.25x the maximum short-circuit current of the PV string, but not exceeding the module's maximum series fuse rating (often 25A).
-
Each PV string requires a separate fuse for positive and negative sides to ensure safety and effective fault isolation.
