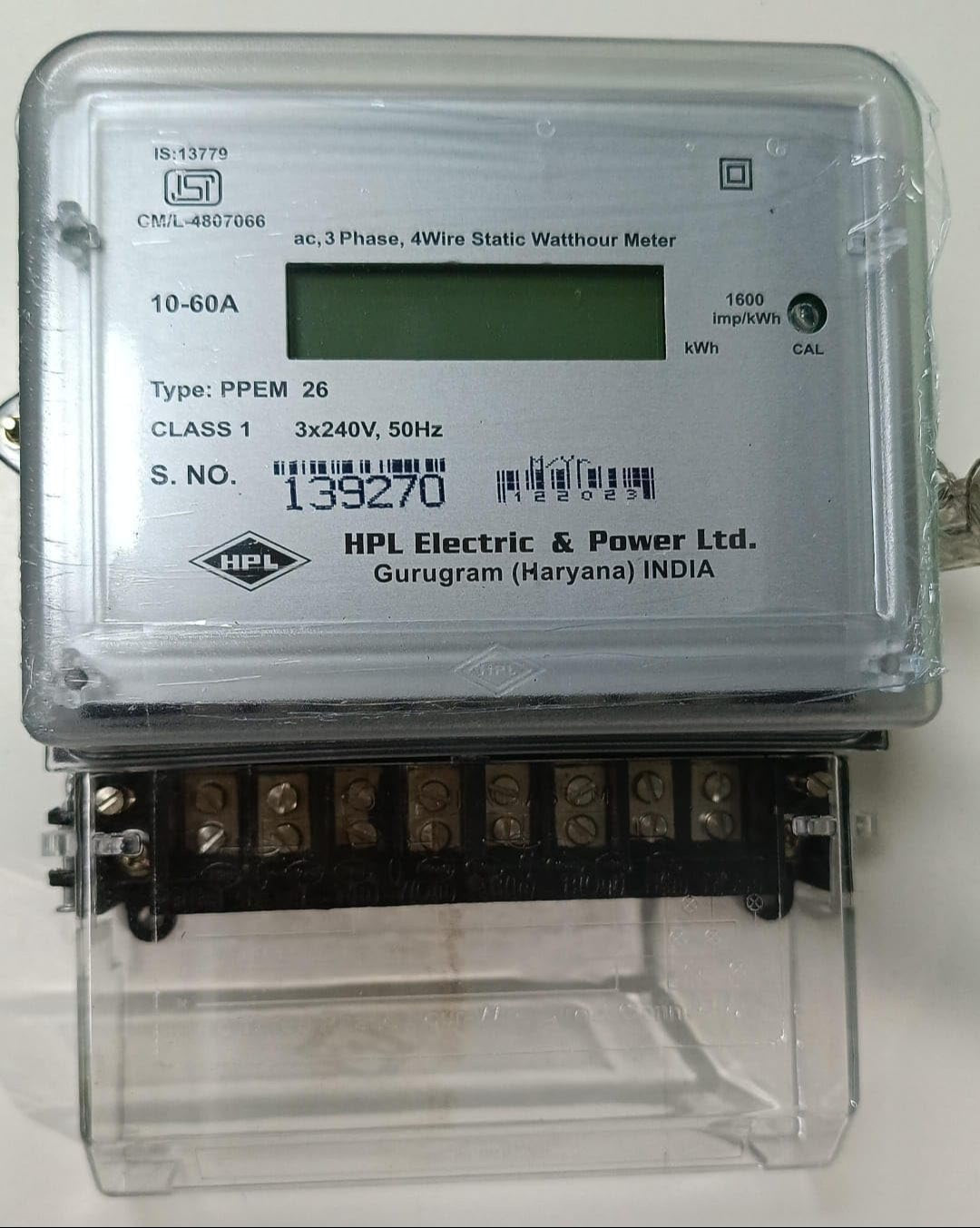

HPL Three Phase Energy Meters are digital, precision electronic meters designed for accurate measurement and billing in industrial, commercial, and utility applications.
-
Current Range: 10-60A (common model rating)
-
Voltage: 3 x 240V, 50 Hz, suitable for LT (Low Tension) three-phase, four-wire systems
-
Accuracy Class: Class 1.0 (as per IS 13779), suitable for billing and energy auditing
-
Display: Large LCD or digital counter display showing kWh and load parameters
-
Measurement: Measures active energy (kWh), and some models include reactive energy and power quality parameters
-
Mounting: Panel mounted, flush digital display, tamper-proof design
-
Communication Options: Models typically feature optical port; some include RS485 for remote reading integration
-
Tamper Detection: Logs cover opening, reverse current, phase loss, and other common tampering attempts
-
Overload Capacity: 400% and 600% of rated current for direct connected meters
-
Construction: Robust casing for industrial use; typically 96x96x86 mm in panel meters
-
Compliance: IS 13779, IS 15959, CEA regulations, widely accepted by utilities like MES, BSES, NDPL
-
Main and sub-metering in industrial and commercial complexes
-
Utility-approved for billing, net metering, and energy auditing
-
Suitable for Indian environmental conditions
-
CT-2M series: Meter with digital counter and basic energy logging
-
CT-2E / CT-2EA series: LCD display energy meters with advanced functionalities
-
TPSM152I141000ME00: 10-60A digital smart meter with 4G/GPRS communication for remote reading
