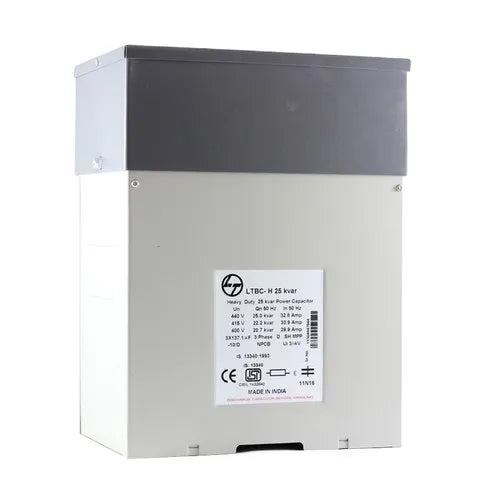

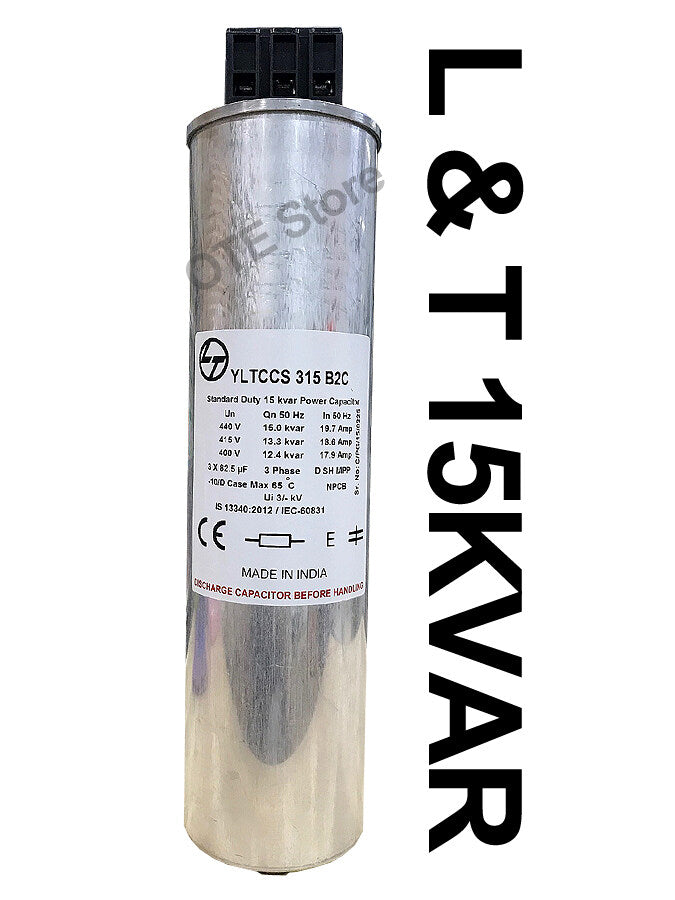

Capacitor Types: Cylindrical (LTXL series) and Box capacitors
-
Power ratings: From 3 kVAr to 100 kVAr depending on the series
-
Voltage rating: 415V / 440V, with other ratings available on request
-
Frequency: 50 / 60 Hz
-
Dielectric: Metallized polypropylene film with double-sided metalized paper (LTXL)
-
Construction: Aluminum casing for cylindrical capacitors, sheet metal for box types
-
Maximum operating temperature up to 70°C
-
Over-voltage capability: +10% to +30% depending on duration
-
Overcurrent: Up to 3 times rated current
-
Peak inrush current withstand: Up to 500 times rated current (LTXL series)
-
Safety: Overpressure disconnector, self-healing technology, discharge resistors
-
Protection: Ingress protection IP20 with indoor mounting
-
Operating life expectancy: Up to 300,000 hours
-
Applications: High harmonic environments such as lighting loads, welding, steel rolling, and harmonic filters
