Microtek solar inverters

1. Off-Grid/Hybrid Solar Inverters (MSUN/PCU)

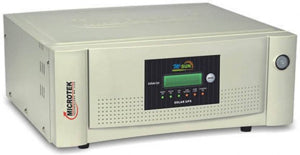

• MSUN 2035/24V: 1,735VA (24V), 1,200Wp PV support, pure sine wave, 5–6 fans, 8–12 lights, TV, fridge, PC.

• PCU 1235N/12V, PCU 1435N/12V, PCU 2035N/24V, PCU 2335N/24V:

  • Ranges from 1,200VA to 2,335VA with up to 1,200Wp PV, DSP-based, dual charging (solar & grid), LCD display, user-selectable modes.

• PWM & MPPT Models:

  • Available with efficient PWM or MPPT charge controllers for enhanced solar power utilization and battery management.

2. On-Grid/Grid-Tied Solar Inverters (GT Series)

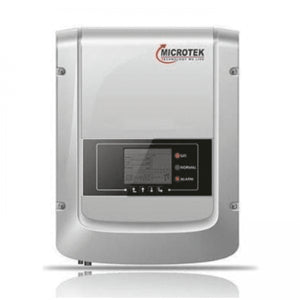

• GT 5.5KW/8.8KW/11KW/15KW/50KW:

  • Pure sine wave, real-time MPPT, Wi-Fi/RS485, high-efficiency (>97%), user-friendly LCD+LED display, grid power export control, IP65 enclosure for outdoor use.

3. Industrial & High-Capacity Models

• MPPT 8070 (7.5kVA, 96V)

• GTI 50KW-M32 (50,000VA Grid-Tied)

• Hybrid Solar Bi-Directional 3KVA/48V: Parallel function, up to 4,000W PV array, 3,000 Watts rated output, intelligent protections.

Core Features Across Models

• Output: Pure sine wave for all connected appliances.

• Technology: DSP/MPPT or PWM charge controllers for optimum solar utilization.

• Efficiency: 90–98% (depending on model and series).

• Protections: Overload, short circuit, over/under voltage, battery deep discharge, anti-islanding (GT).

• Battery Compatibility: Tubular, SMF, flat plate, and even lithium for select models.

• Solar Optimization: Intelligent charge sharing, solar/grid priority, auto-reset, LCD/graphical status displays.

• WiFi/Remote Monitoring: Enabled on select models for real-time performance tracking and configuration.

• Applications: Home (1kVA–2.3kVA), shop/office (2–5kVA), commercial/industrial setups (up to 50kVA).

Example Model Data
