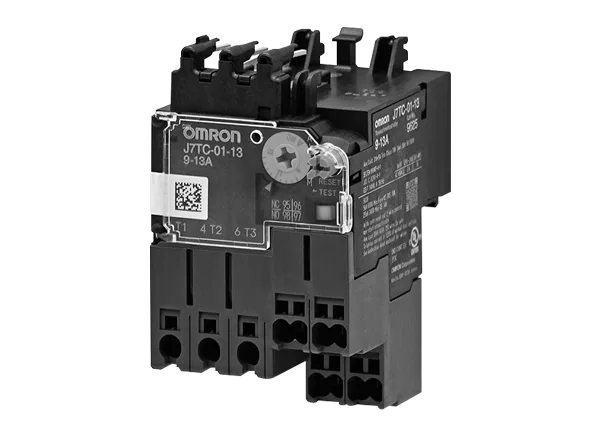

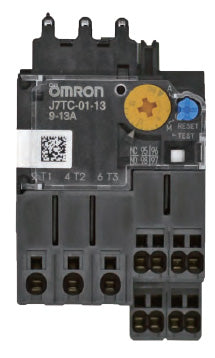

Omron Thermal Overload Relay 24V DC

Here are the key features of the Omron Thermal Overload Relay with 24V DC control voltage:

• Coil Voltage: 24V DC

• Motor Protection: Protects motors from overload and phase loss when combined with contactors.

• Setting Range: Adjustable current settings for motor full load current based on model.

• Tripping Characteristics:

  • Trip class about 10A (model dependent).

  • Trips on overload according to standards IEC 60947-4-1/JIS C 8201-4-1.

• Auxiliary Circuit Ratings:

  • Rated operational current at 24V DC typically around 1.2A for DC-13 utilization category.

  • Rated operational current for AC applications also available depending on version.
