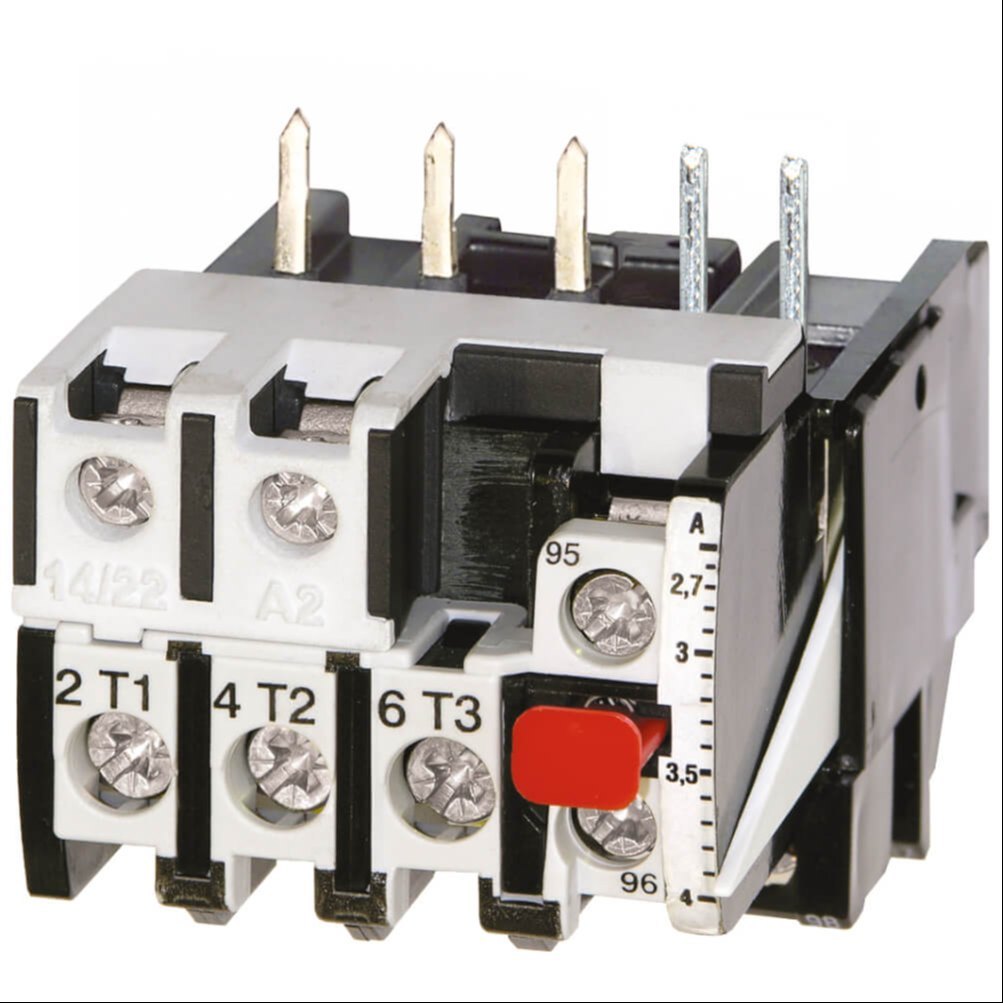

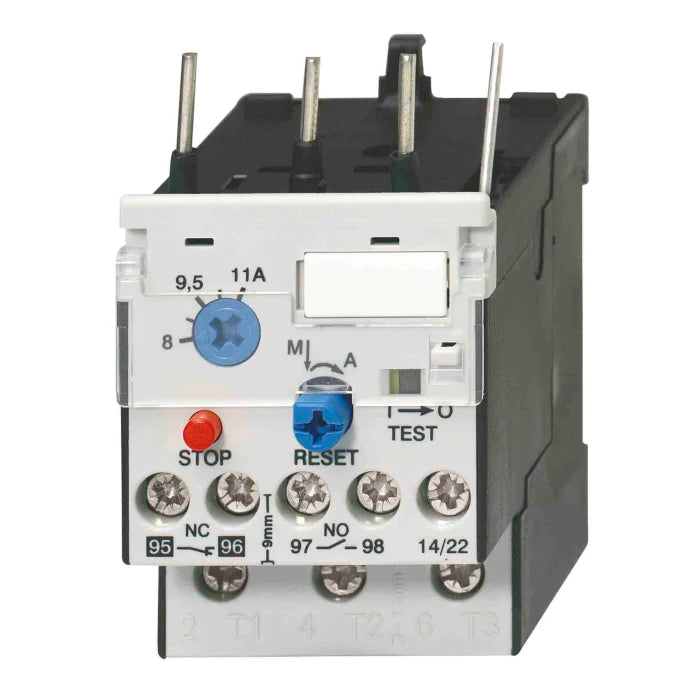

Motor Protection: Provides reliable protection from overload and phase loss when combined with compatible contactors (e.g. J7KC series) for motor power up to 5.5 kW at 440 VAC.
-
Current Setting Range: Available in various adjustable current ranges, for example from 0.1A up to around 9A and beyond, depending on specific models.
-
Construction: Push-in plus terminal design for easy wiring and installation.
-
Auxiliary Contacts: Typically includes one normally open (NO) and one normally closed (NC) auxiliary contact for control circuit integration.
-
Trip Class: Usually class 10 or similar, providing tripping characteristics optimized for motor protection.
-
Standards Compliance: Meets safety and performance standards such as IEC 60947-4-1, JIS C 8201-4-1, UL, CSA, and CCC.
-
Mechanical Dimensions: Compact size, examples include approx. 79.5 mm height, 45 mm width, and 55.5 mm depth.
