Omron Time Delay Relay 12V DC

Here are the key features of the Omron Time Delay Relay with 12V DC supply:

• Supply Voltage: 12V DC nominal voltage, with an operating range typically around 90% to 110% of rated voltage for stable performance.

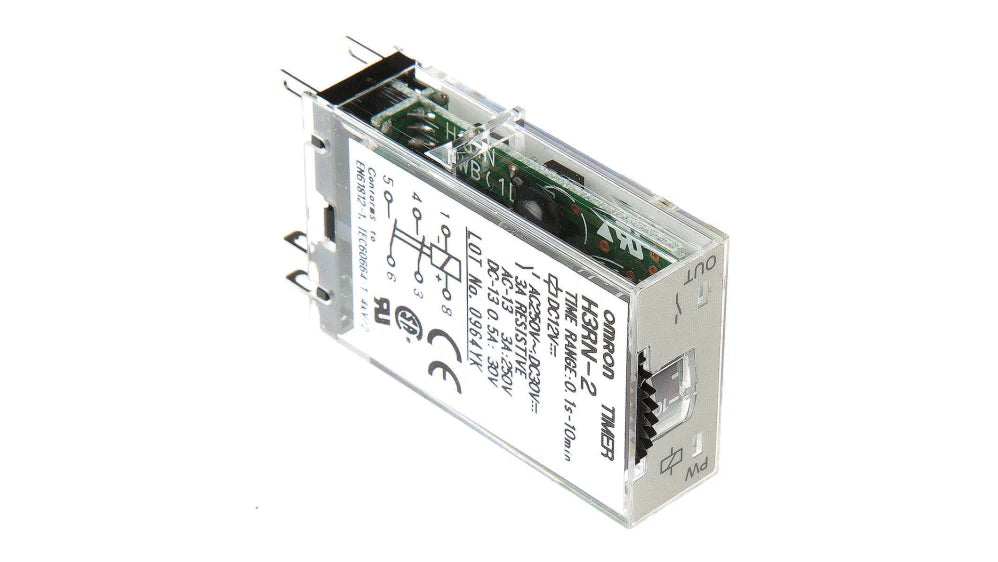

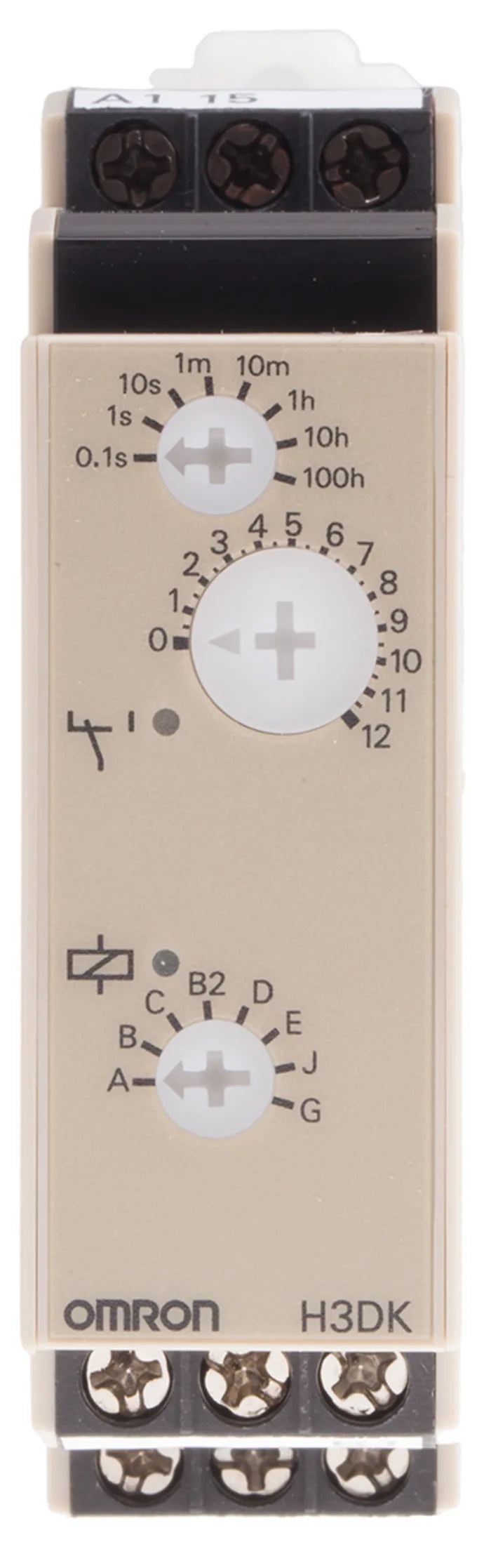

• Mounting Type: Available in DIN rail mount (e.g., H3DK series) and panel mount types (e.g., H3RN series).

• Operating Modes: Multiple delay functions such as ON-delay, OFF-delay, flicker ON start, flicker OFF start, interval timing, one-shot output, signal ON/OFF delay, and multi-functional timing modes selectable via DIP switch or settings.

• Time Range: Very wide time range options, from milliseconds (~0.1 s) up to 100 hours or more depending on model.

• Contact Type and Ratings: Usually come with relay output contacts, commonly SPDT or DPDT configurations, rated around 3A to 5A at 250 VAC for switching loads.

• Terminal Type: Screw terminals or 11-pin round sockets for easy wiring and replacement.

• Indicators: Some models include LED indicators for operational status and relay activation.

• Accuracy: High timing accuracy typically within ±0.2% to ±1%, with minimal setting error and reset time usually as low as 0.1 seconds.
