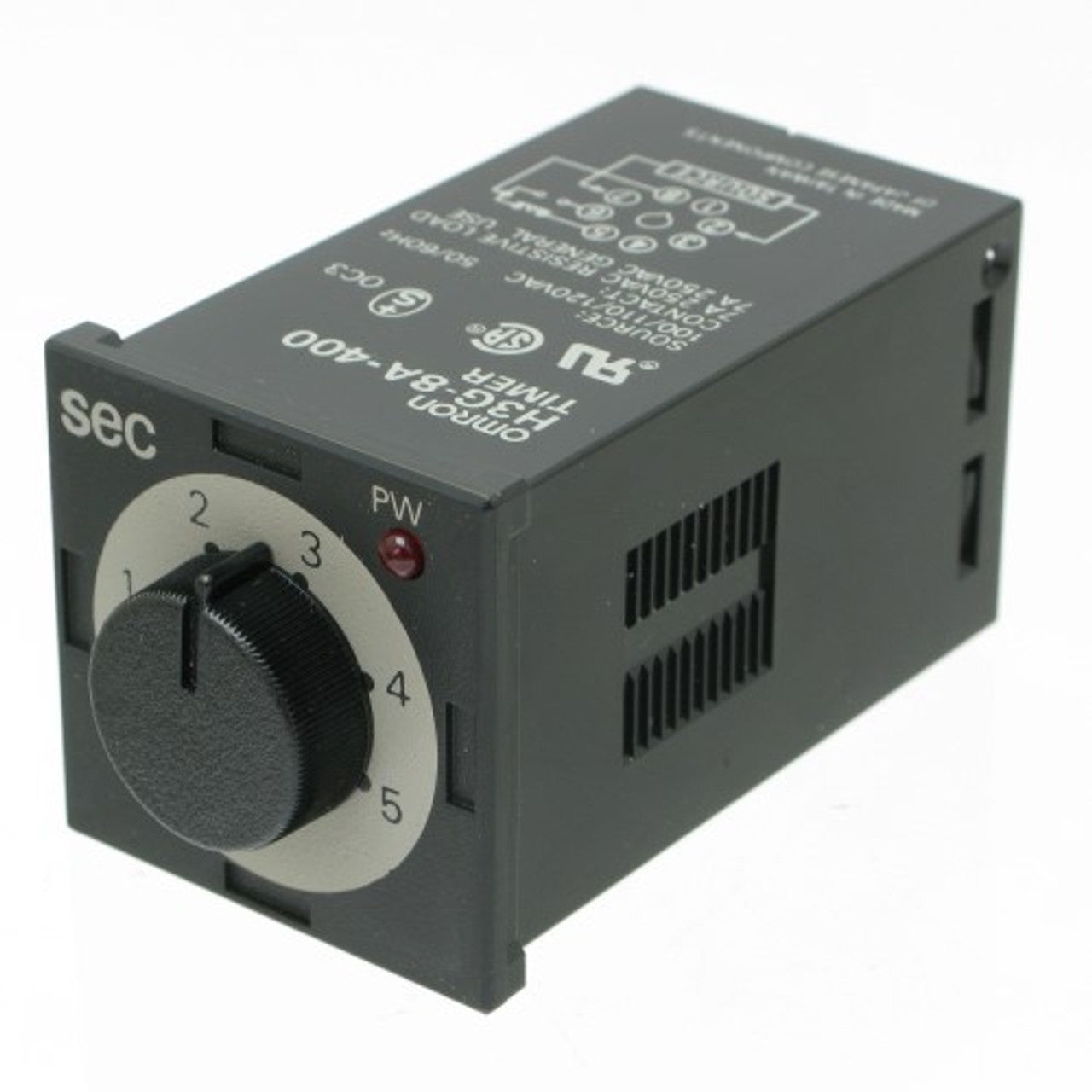

Omron Time Delay Relay 24V DC

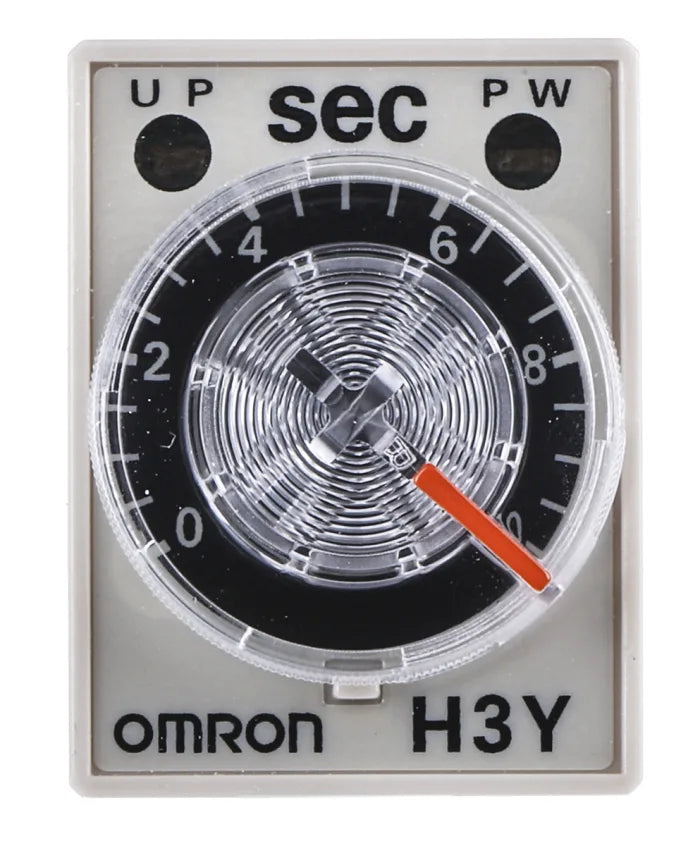

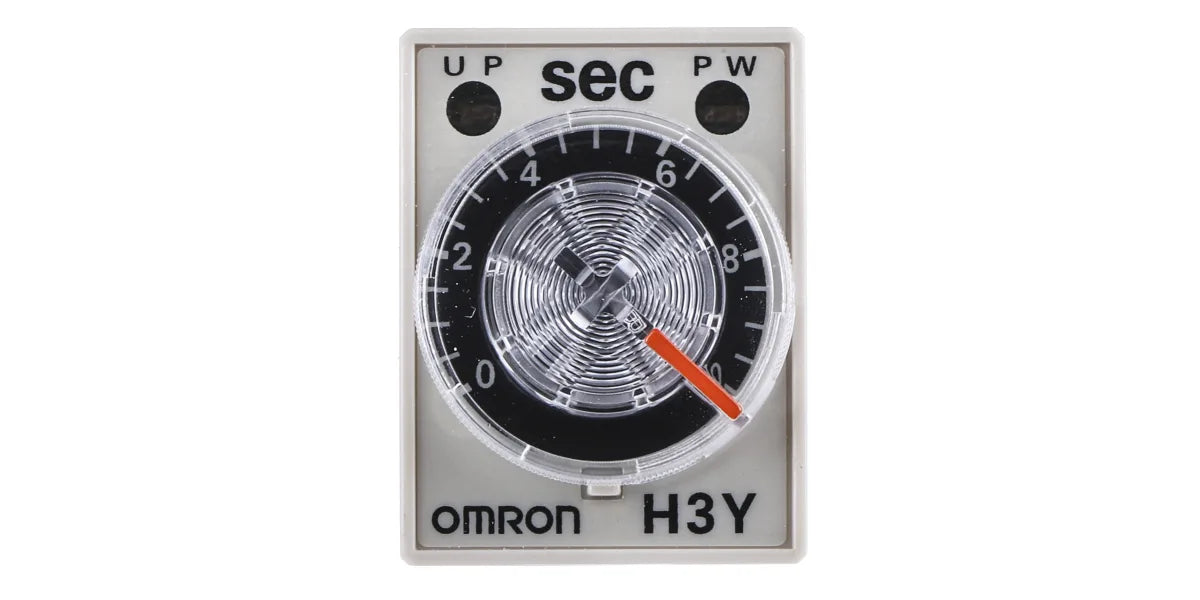

The Omron Time Delay Relay with 24V DC supply voltage typically refers to solid-state timer relays like the Omron H3Y-2-C or similar models designed for industrial automation control. Here are the key features of such Omron 24V DC Time Delay Relays:

• Type: Solid-state time delay relay, often power ON-delay function

• Supply Voltage: 24V DC (often requires a power supply with single-phase full-wave rectifier)

• Time Ranges: Various selectable ranges depending on the model (example ranges 0.5 sec to 10 sec, or minutes, depending on model suffix)

• Output Contacts: DPDT (Double Pole Double Throw) or 4PDT depending on model

• Contact Rating: Typically 3A to 5A at 250VAC resistive load

• Terminal Type: 8-pin or 14-pin plug-in terminals or socket mountable

• Indicators: LED indicators showing power and output status

• Operation Temperature: Usually from around -10°C to +50°C or +55°C

• Power Consumption: Approximately 0.9W to 1.1W when relay ON, much less when OFF

• Reset Voltage: Typically 10% of rated voltage minimum
