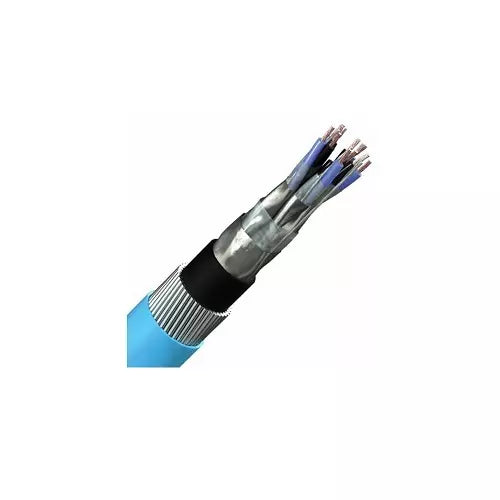

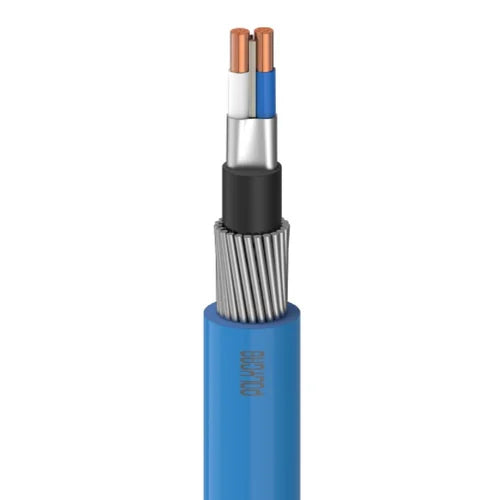

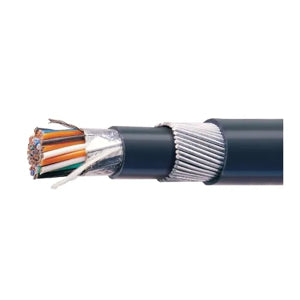

Polycab 0.75 sqmm multi-pair shielded armoured instrumentation cables (100 Mtr) are precision-engineered for signal transmission and control applications in automation, process industries, and instrumentation networks. These cables ensure low interference, high durability, and superior mechanical protection.
-
Conductor: Annealed stranded copper (tinned/plain), Class 2 as per IS:8130
-
Insulation: PVC Type A or XLPE (as per IS:5831 / EN 50288-7)
-
Pairs/Cores: Multi-pair configurations (2, 3, 5, 8, 12, 16, 24 pairs available)
-
Shielding:
-
Overall: Aluminium Mylar Tape with ATC (Annealed Tinned Copper) drain wire
-
Optional: Individual pair shielding to avoid crosstalk
-
Armouring: Galvanised steel wire or strip providing high mechanical protection
-
Inner Sheath: Extruded PVC, Type ST1 or ST2
-
Outer Sheath: FRLS (Flame Retardant Low Smoke) PVC or LSZH (Low Smoke Zero Halogen)
-
Voltage Rating: 300/500 V
-
Operating Temperature: Up to +90°C (PVC) / +85°C (HRPVC) / +70°C (Normal duty)
-
Standard Compliance: IS:8130, IS:5831, EN 50288-7, IEC 60228
