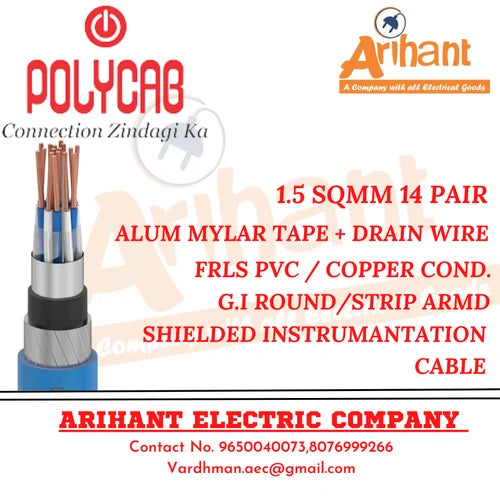

Polycab 1.5 sqmm multi-pair shielded armoured instrumentation cable (100 Mtr) is a robust cable designed for accurate signal transmission and enhanced mechanical as well as fire protection in rigorous industrial environments.
-
Conductor: Stranded plain copper (Class 2 as per IS:8130/2013)
-
Insulation: Extruded PVC Type A (IS:5831) or XLPE
-
Pairing: Multiple options available (2, 4, 8, 12, 16+ pairs at 1.5 sqmm per conductor)
-
Shielding:
-
Overall: Aluminium Mylar Tape with ATC (Annealed Tinned Copper) drain wire
-
Individual pair shielding: To minimize crosstalk (available in select variants)
-
Inner Sheath: Extruded PVC Type ST1 (IS:5831)
-
Armouring: Galvanized steel round wire or strip for high mechanical protection
-
Outer Sheath: FR-LSH (Flame Retardant Low Smoke Halogen) PVC, Blue color, Type ST1 (IS:5831)
-
Voltage Rating: 300/500 V as standard
-
Compliance: Generally as per IS 1554 Part I/88 & BS EN 50288-7
-
Packing: Standard 100 Mtr coil/drum
