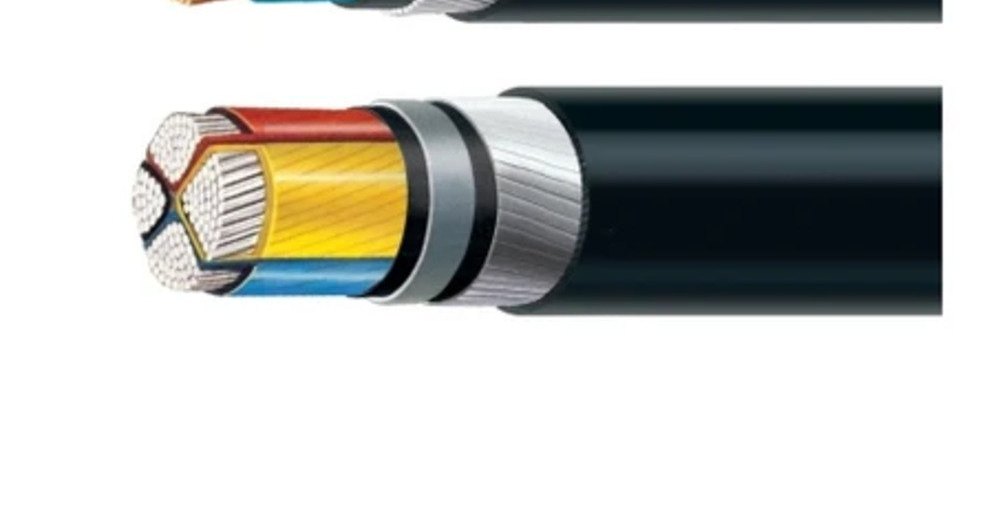

Polycab 10.0 Sqmm, A2Xfy Aluminium Xlpe Insulated Armoured Str Frls Cable 1.1 Kv (1 Meter)

Polycab 10.0 Sqmm, A2Xfy Aluminium XLPE Insulated Armoured Strip FRLS Cable 1.1 kV (1 Meter) is a low-voltage power cable engineered for durability and safety in industrial and commercial power distribution.

Construction & Features

• Conductor: Stranded compacted aluminium, 10 sqmm cross-section compliant with IS 8130

• Insulation: XLPE (Cross-linked Polyethylene) for thermal, electrical, and chemical resistance

• Armouring: Galvanised steel wire armour (2XWY or A2XFY type) with flat strip protection

• Inner Sheath: PVC Type ST2 per IS 5831

• Outer Sheath: Flame Retardant Low Smoke (FRLS) PVC for enhanced fire safety

• Voltage Rating: 1.1 kV (650/1100V class as per IS 7098 Part 1)

• Core Configuration: Commonly 2-core, 3-core, 4-core, 3.5-core options with color/number coded cores

• Operating Temperature: +90°C continuous, +250°C short circuit

• Compliance: IS 7098 Part 1, IS 5831, IS 8130, RoHS & REACH certified
