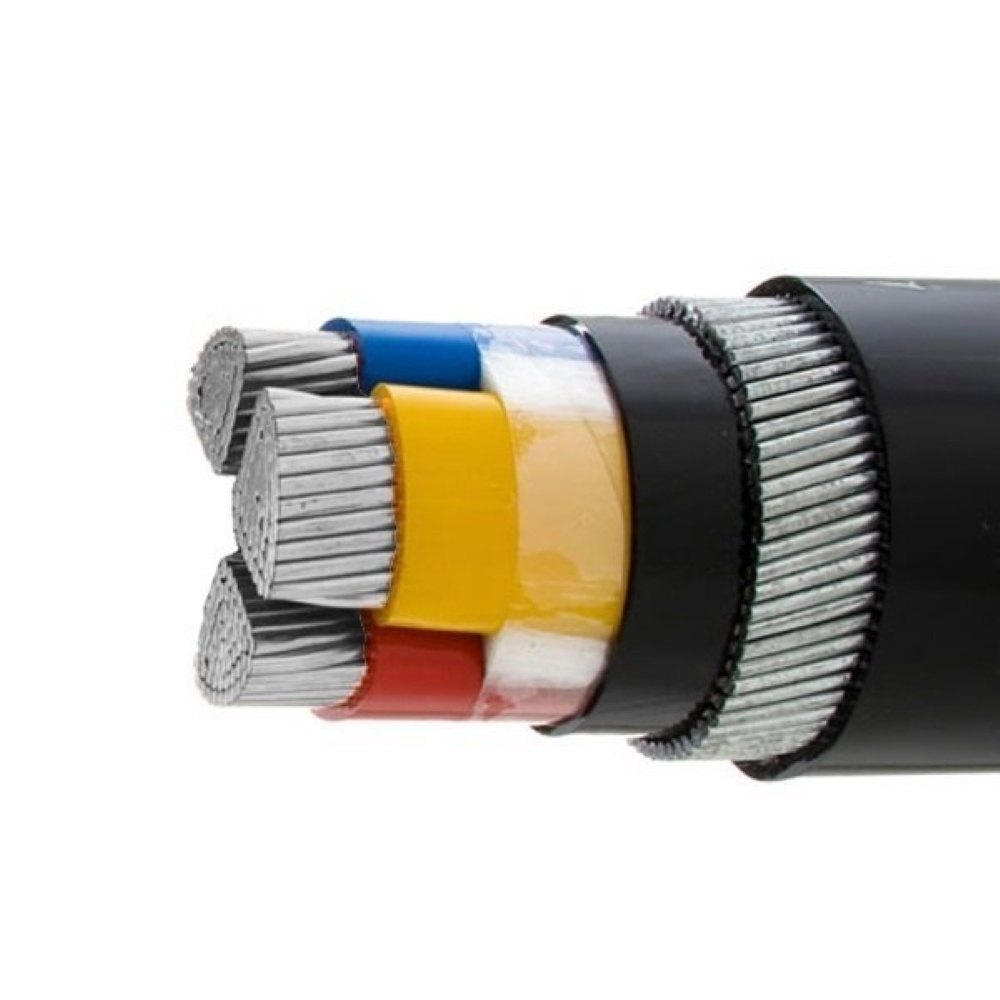

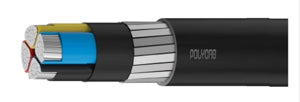

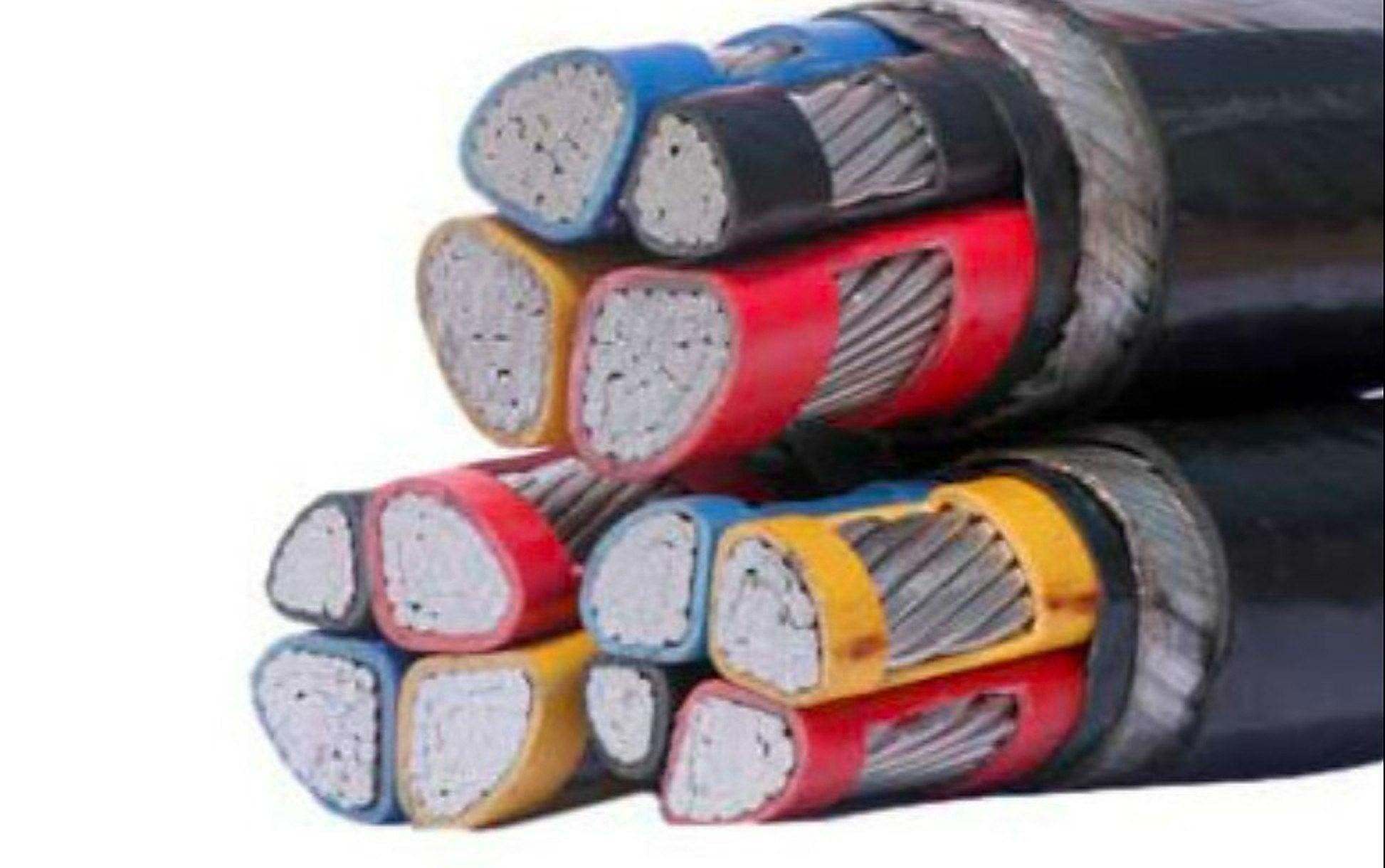

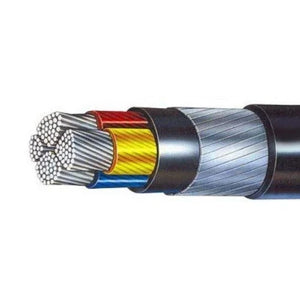

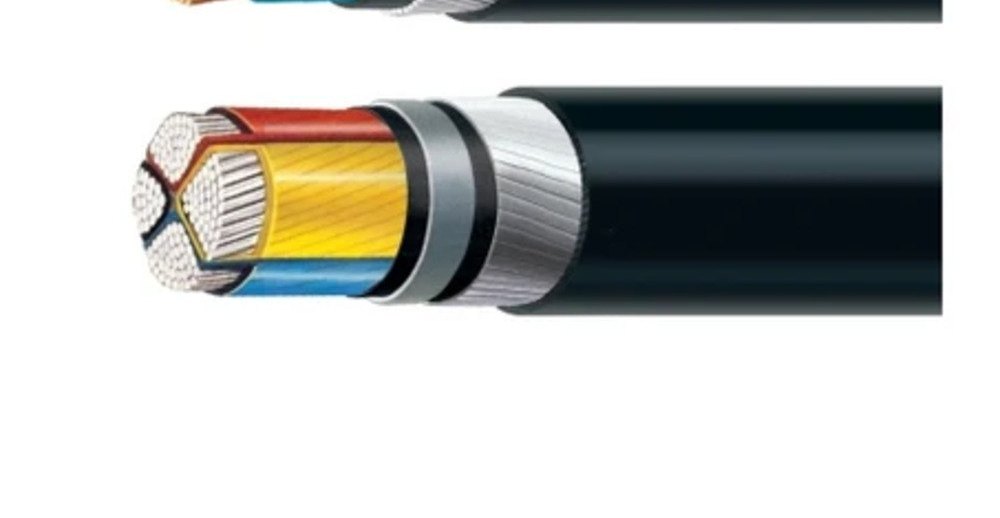

Polycab 240.0 Sqmm, A2Xfy Aluminium XLPE Insulated Armoured Strip FRLS Cable 1.1 kV (1 Meter) is a premium low-voltage power cable designed for reliable and safe electrical power distribution in industrial and commercial installations, with solid mechanical protection and fire-retardant properties.
-
Conductor: Stranded compacted aluminium, 240 sqmm cross-section as per IS 8130 Class 2
-
Insulation: XLPE (Cross-linked Polyethylene), offering excellent thermal, electrical, and chemical resistance according to IS 7098 Part 1
-
Armouring: Galvanised steel flat strip armouring for high mechanical strength and protection
-
Inner Sheath: Extruded PVC Type ST2 per IS 5831
-
Outer Sheath: Flame Retardant Low Smoke (FRLS) PVC for fire safety and low toxic smoke emission
-
Voltage Rating: 1.1 kV (650/1100 V as per IS 7098 Part 1)
-
Core Configuration: Available mainly in 3-core, 3.5-core configurations, with color/number-coded cores for identification
-
Operating Temperature: +90°C continuous, +250°C for short circuit withstand
-
Standard Compliance: IS 7098 Part 1, IS 5831, IS 8130, RoHS, and REACH
