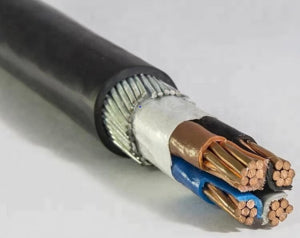

Polycab 35.0 sqmm Copper Armoured Cable, type 2XWY (wire armoured) / 2XFY (flat wire armoured), with a voltage rating of 650/1100V, is intended for heavy-duty power distribution in industrial and commercial settings.
-
Conductor Size: 35.0 sq.mm stranded copper conductor.
-
Voltage Rating: 650/1100 V.
-
Armouring: Wire armoured or flat wire armoured (4 × 0.8 mm thickness).
-
Insulation: PVC insulation (~0.9 mm thick) with FRLS PVC outer sheath (~1.4 mm thick).
-
Overall Diameter: Approximately 24.4 mm (wire armoured) and 26 mm (strip armoured).
-
Current Rating: About 148 Amps.
-
Resistance:
-
Max DC resistance: 0.524 Ohm/km.
-
Max AC resistance: 0.671 Ohm/km.
-
Capacitance: Approximately 0.23 µF/km.
-
Sheath Color: Black.
-
Number of Cores: Typically 4-core.
