Polycab 4.0 sqmm 200Mtrs HFFR (Halogen Free Flame Retardant) industrial multistrand cable specifications:
-
Size: 4.0 sqmm
-
Conductor: Bright annealed stranded copper conductor as per IS 8130, class 5
-
Insulation: Cross-linked Halogen Free Flame Retardant (HFFR) compound compliant with IS 17048, low smoke emission, and reduced corrosive gases during fire
-
Voltage Rating: 1100V AC, also suitable for DC up to 1500V to earth
-
Operating Temperature: Fixed installation from -15°C to +90°C
-
Bending Radius: Fixed installation minimum 4 times overall diameter, occasional 6 times
-
Test Voltage: 3000V AC at room temperature
-

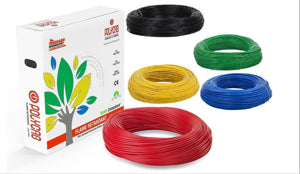

Colors: Available in standard color codes including Red, Blue, Black, Yellow, Green-Yellow for cores
-
Current Capacity: Approximately 35-40 Amps depending on installation conditions
-
Compliance Standards: IS 8130, IS 17048, IEC 60332-1-2 (flame retardant), ASTM D2863 (oxygen index), ASTM D2843 (smoke emission), IEC 60754-1 (acid gas emission)
