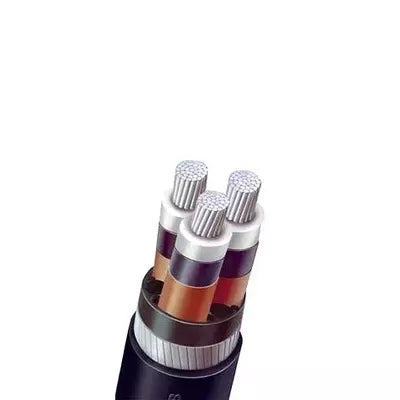

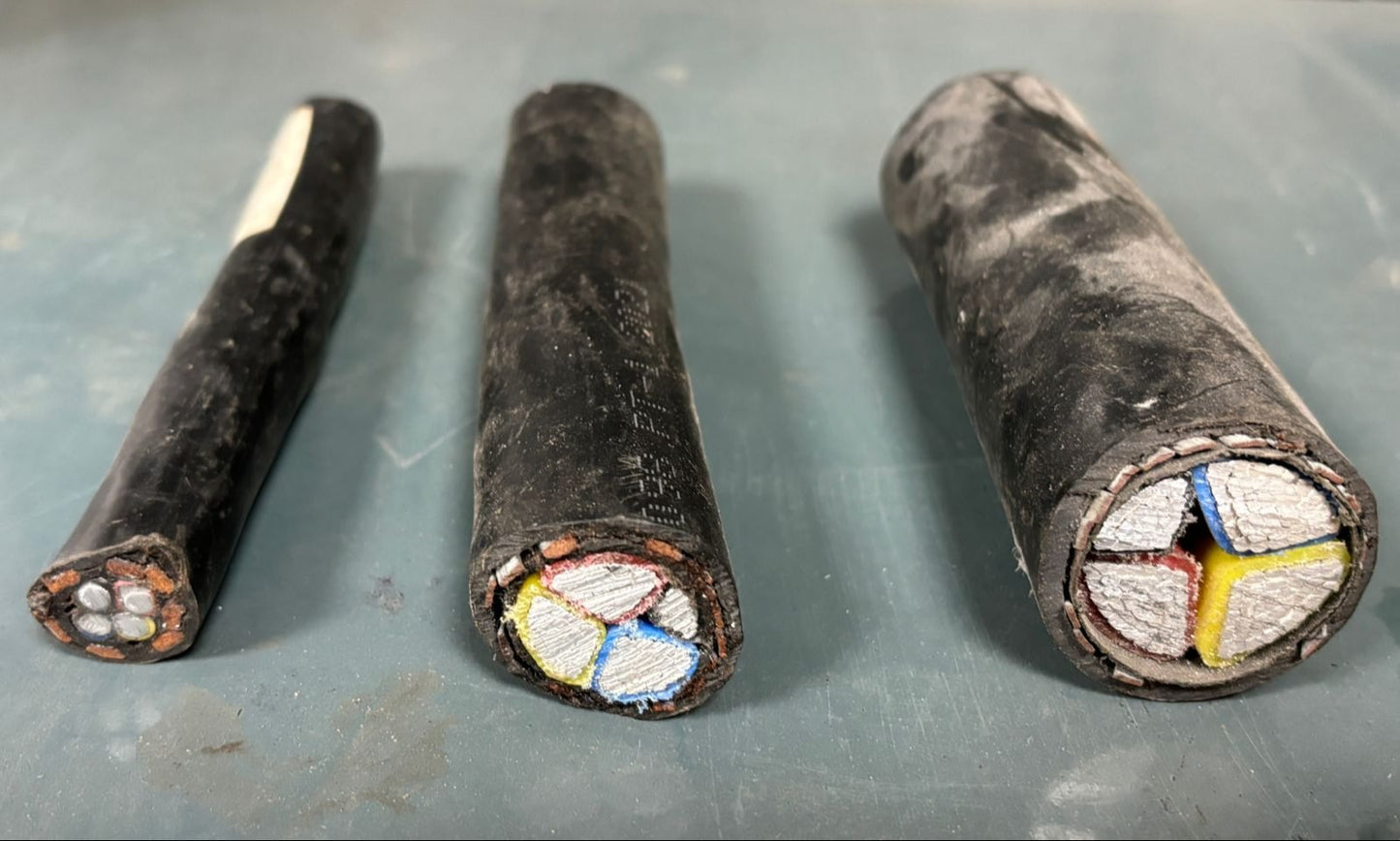

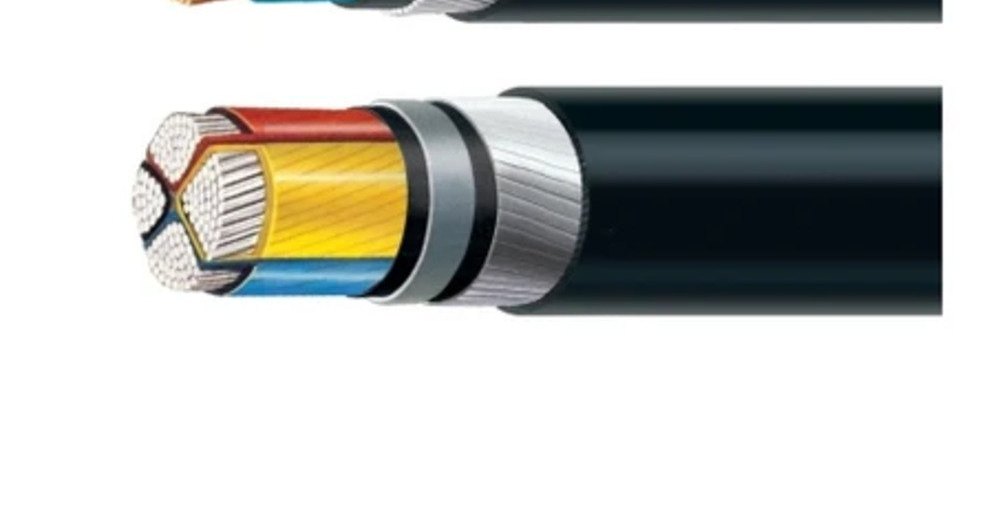

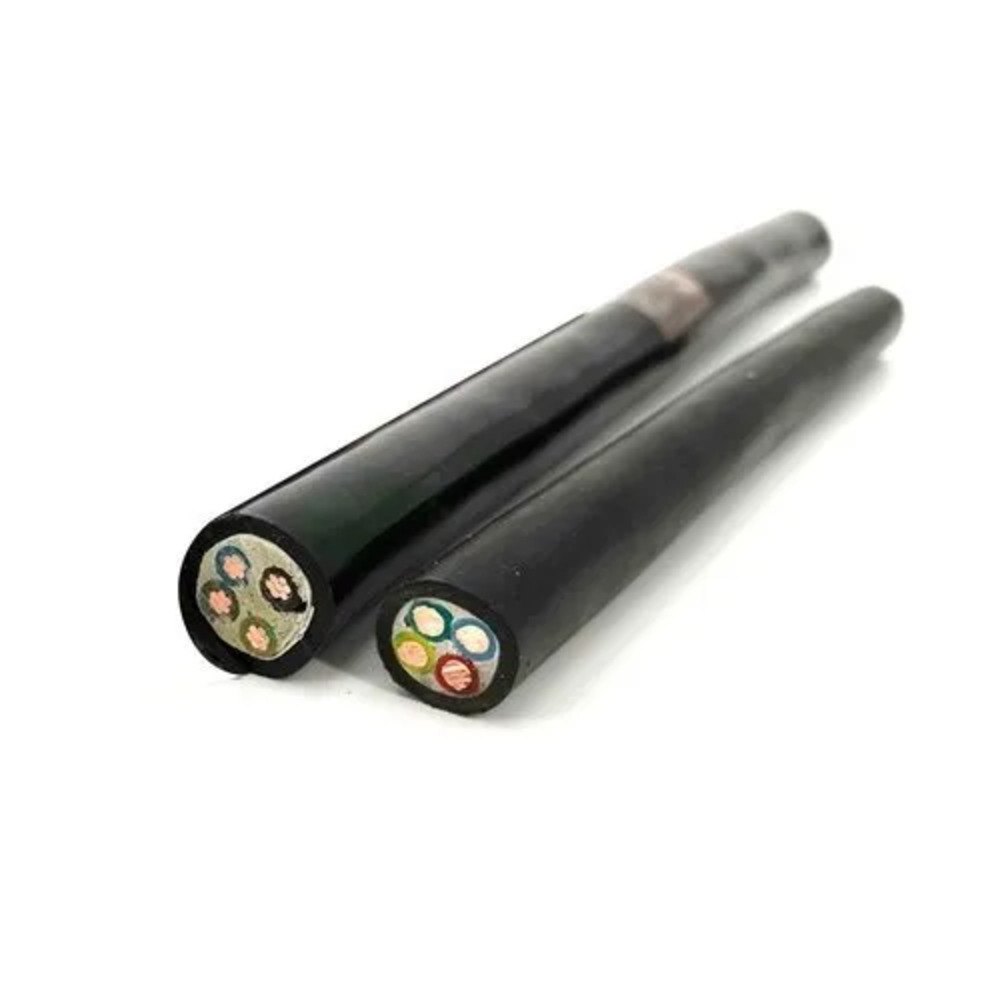

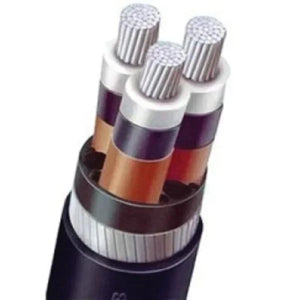

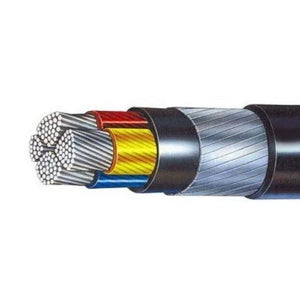

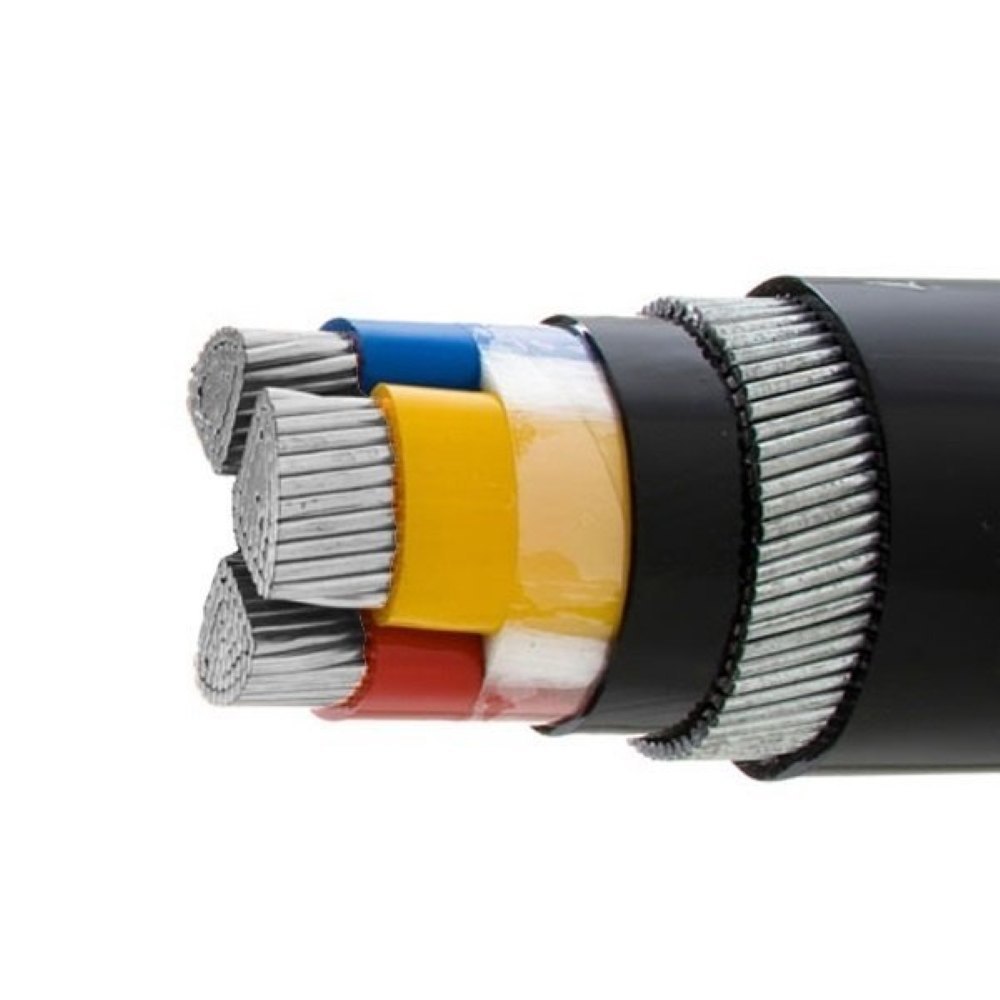

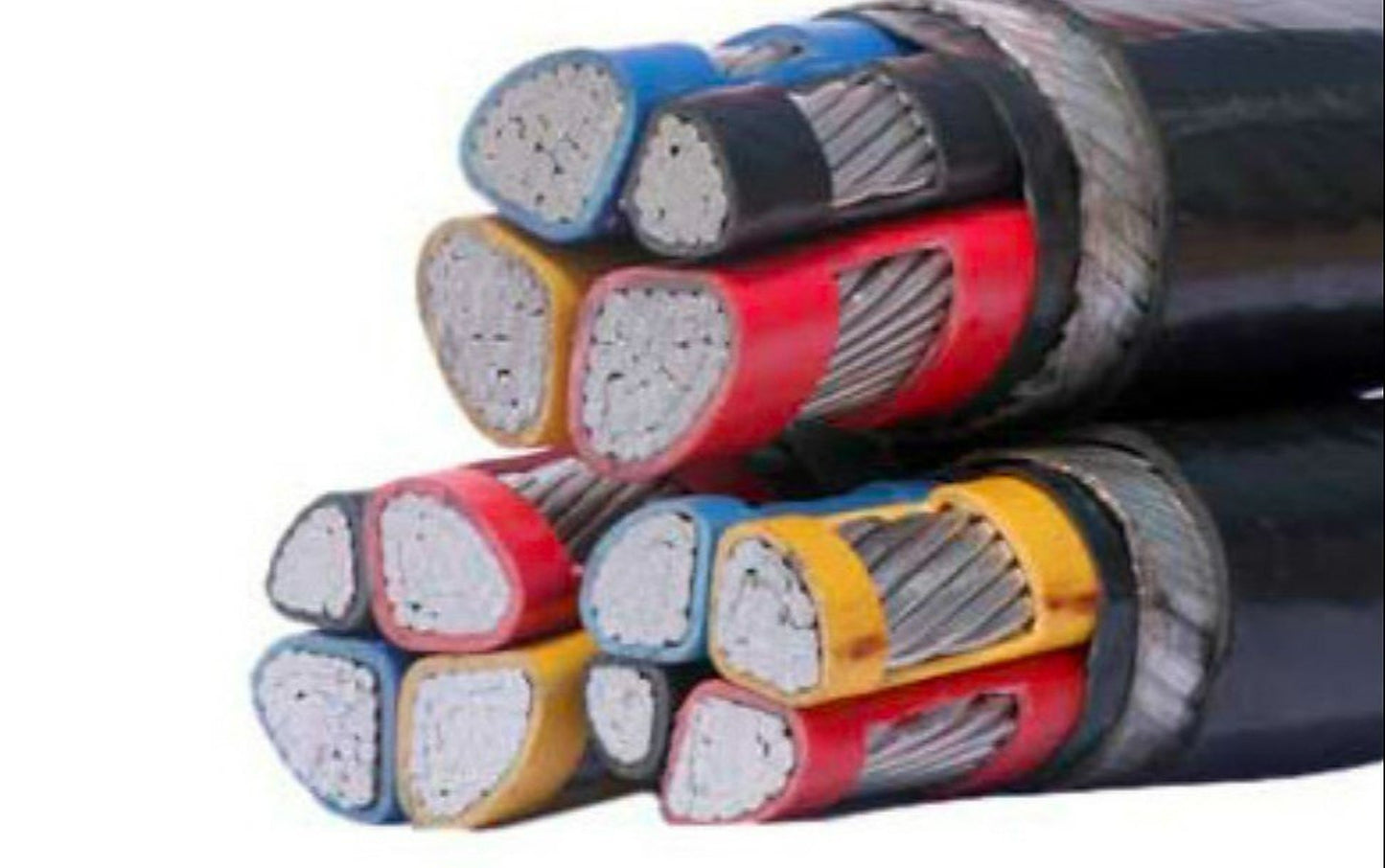

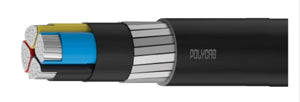

Polycab 70.0 Sqmm, A2Xfy Aluminium XLPE Insulated Armoured Strip FRLS Cable 1.1 kV (1 Meter) is a high-capacity low-voltage power cable designed for heavy industrial and commercial power distribution with excellent mechanical protection and fire-retardant safety.
-
Conductor: Stranded compacted aluminium, 70 sqmm cross-sectional area as per IS standards
-
Insulation: XLPE (Cross-linked Polyethylene) for superior thermal, electrical, and chemical resistance
-
Armouring: Galvanised steel flat strip armouring for mechanical strength and protection
-
Inner Sheath: Extruded PVC Type ST2 per IS 5831
-
Outer Sheath: Flame Retardant Low Smoke (FRLS) PVC providing enhanced fire safety and low toxic emissions
-
Voltage Rating: 1.1 kV (650/1100 V class as per IS 7098 Part 1)
-
Core Configuration: Available in 3-core, 3.5-core, and 4-core versions with color-coded cores for phase identification
-
Operating Temperature: Continuous operation up to +90°C, short circuit withstand up to +250°C
-
Standards Compliance: IS 7098 Part 1, IS 5831, IS 8130, RoHS, REACH certified
