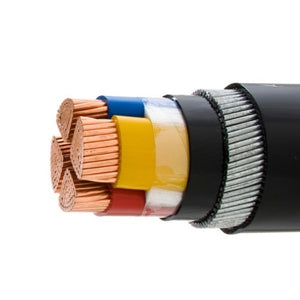

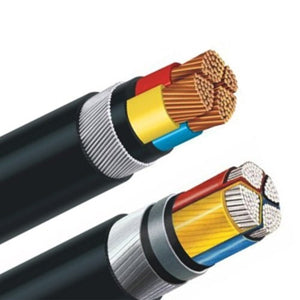

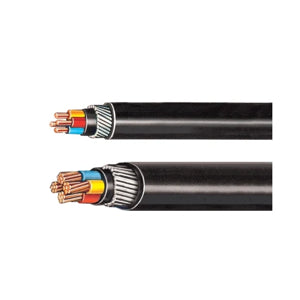

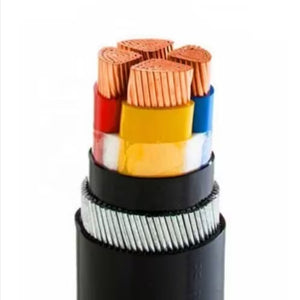

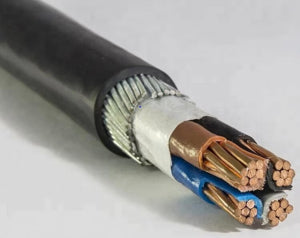

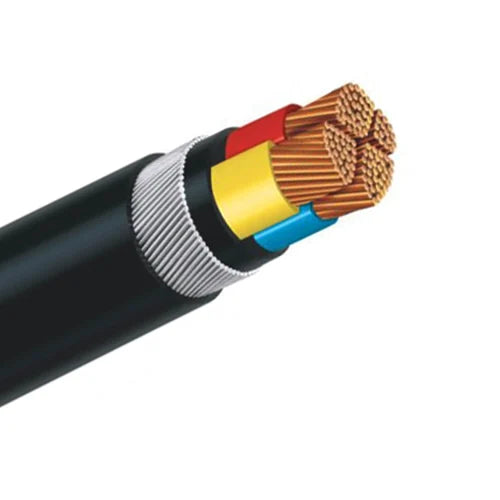

Polycab 95.0 sqmm Copper Armoured Cable, type 2XWY/2XFY, with a voltage rating of 650/1100V is designed for heavy power transmission and distribution with robust mechanical protection.
-
Conductor Size: 95.0 sqmm stranded copper conductor.
-
Number of Cores: Commonly available as 3-core or 3.5-core.
-
Armouring Type: Wire armoured (2XWY) or Flat wire armoured (2XFY).
-
Voltage Rating: 650/1100 Volts suitable for low tension power applications.
-
Insulation: PVC insulation typically with Flame Retardant Low Smoke (FRLS) outer sheath.
-
Current Carrying Capacity: Around 260 to 284 Amps depending on core configuration and installation.
-
Overall Diameter: Approximately 35.2 mm (wire armoured) to 37.6 mm (strip armoured).
-
PVC Insulation Thickness: Approximately 1.0 to 1.1 mm.
-
Armouring Thickness: Typically 4 × 0.8 mm.
-
Outer Sheath Thickness: Around 1.4 to 1.56 mm.
-
Resistance:
-
DC resistance ~0.193 Ohm/km.
-
AC resistance ~0.268 Ohm/km.
-
Standards: IS 7098 (Part 1) 1988.
-
Typical Length: Available in meter lengths or coils.
