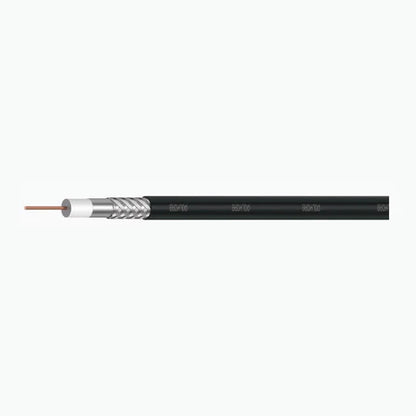

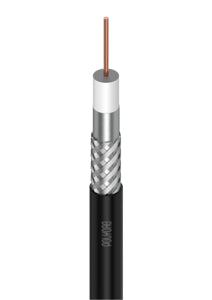

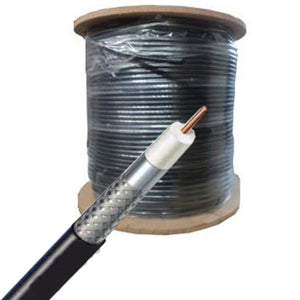

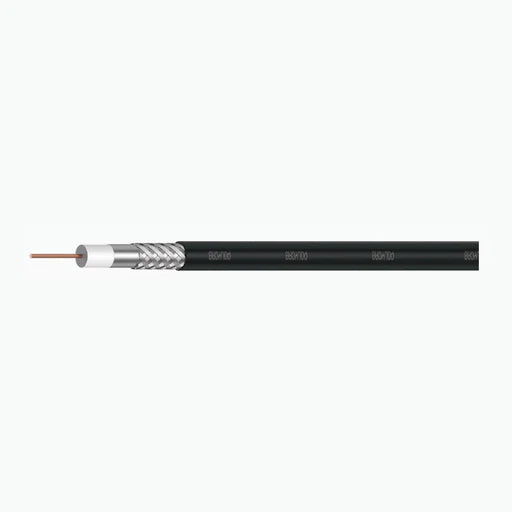

Polycab RG-11 CCS PVC Unarmoured Co-Axial Cable (100 & 300 m) is a high-performance coaxial cable designed for long-distance signal transmission with excellent shielding and low attenuation, suited for cable TV, broadband, and CCTV applications.
Key Specifications:
-
Conductor: Copper Clad Steel (CCS) for enhanced strength with good conductivity
-
Insulation: Gas-injected physical foam polyethylene (HDPE)
-
Shielding: Dual shielding with bonded aluminium foil and aluminium alloy wire braid (about 60% coverage)
-
Filling: Jelly flooded for moisture resistance and durability
-
Sheath: Flame retardant black PVC outer jacket
-
Impedance: 75 Ohms (standard for video and RF transmission)
-
Overall Diameter: Approximately 9.8 mm
-
Temperature Rating: Max 70°C
-
Bending Radius: Minimum 20 times overall cable diameter
-

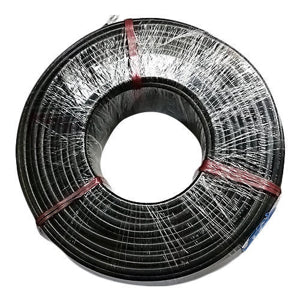

Lengths Available: 100 m and 300 m coils
