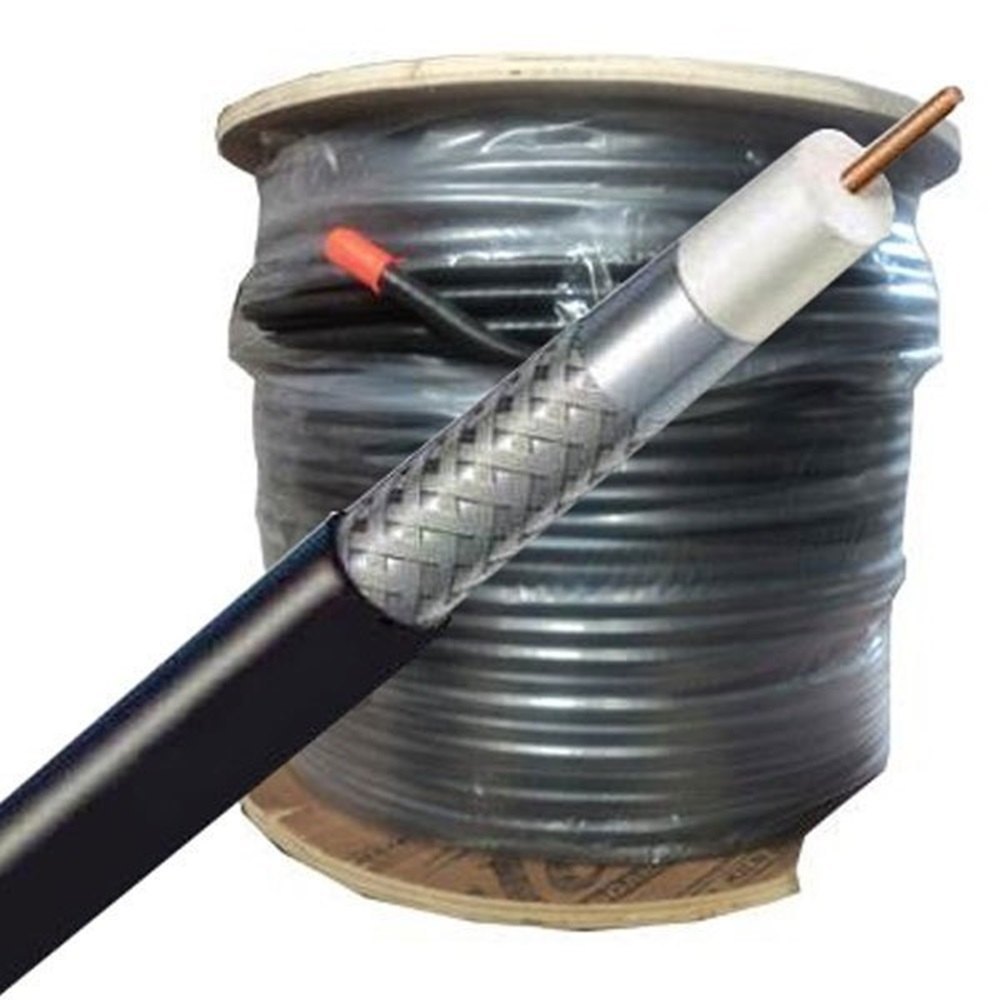

Polycab RG-11 PVC Unarmoured Co-Axial Cable (1000 m) is a high-quality coaxial cable designed for high-frequency signal transmission, particularly suitable for long-distance applications such as cable TV, satellite broadcasting, and broadband internet.
-
Conductors: Copper, solid core for low signal attenuation and high performance
-
Insulation: Gas-injected physical foam polyethylene (HDPE) ensuring minimal signal loss
-
Shielding: Bonded aluminium foil and aluminium alloy wire braid with approximately 60% coverage, providing excellent EMI shielding
-
Flooded with Jelly: Moisture-proof jelly filling inside the cable for outdoor and underground durability
-
Outer Sheath: Flame-retardant black PVC, providing mechanical and environmental protection
-
Impedance: 75 ohms, standard for RF and video signals
-
Overall Diameter: Approximately 11 mm
-
Temperature Range: Max operating temperature of 70°C
-
Bending Radius: Minimum 20 times the overall diameter
-
Length Options: Available in 1000 meters (1 km) coils for large installations
