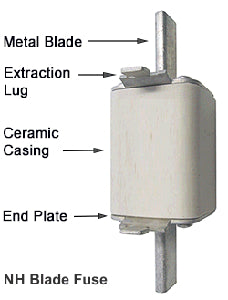

Schneider Electric offers a comprehensive range ofblade fuses (DIN NH type) rated for 690V ACdesigned for industrial protection, with options across various current ratings and utilization types.
Examples of 690V Schneider Blade Fuses
Fuse-link with blades DIN NH size 00 - aM 100A 690V AC
DIN NH00 blade fuse, aM curve, 100A, 690V AC. Suitable for motor circuit protection. High breaking capacity and robust construction.
Fuse-link with blades DIN NH size 00 - gG 125A 690V AC
DIN NH00 blade fuse, gG curve (general purpose), 125A, 690V AC. Used for comprehensive circuit protection. Catalog DF2FGN125.
Fuse-link with blades DIN NH size 1 - gG 200A 690V AC
DIN NH1 blade fuse, gG curve, 200A, 690V AC. Industrial main and sub-distribution panel protection. Catalog DF2HN1201.
Fuse-link with blades DIN NH size 2 - aM 315A 690V AC
DIN NH2 blade fuse, aM curve, 315A, 690V AC. Heavy-duty motor and feeder protection. Catalog DF2JA1311.
These fuses are suitable for motor protection (aM type) and general applications (gG type). Fuse sizes range from NH000 up to NH4, and current ratings from below 100A up to 800A or higher, depending on the application.
