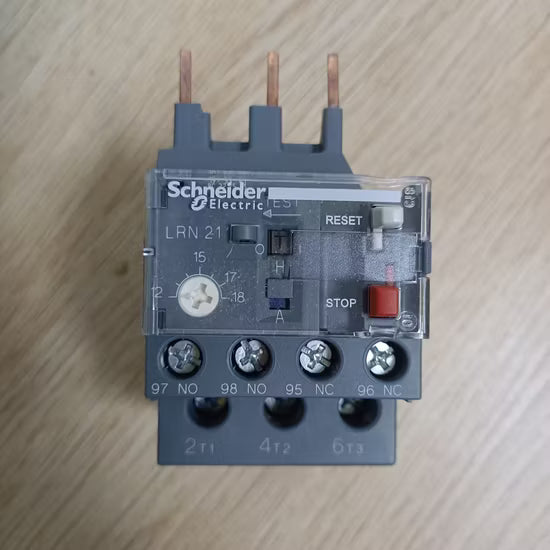

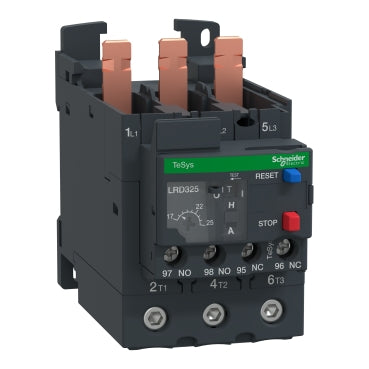

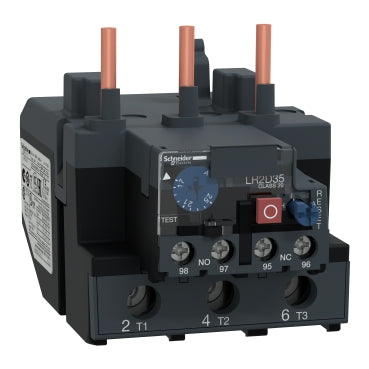

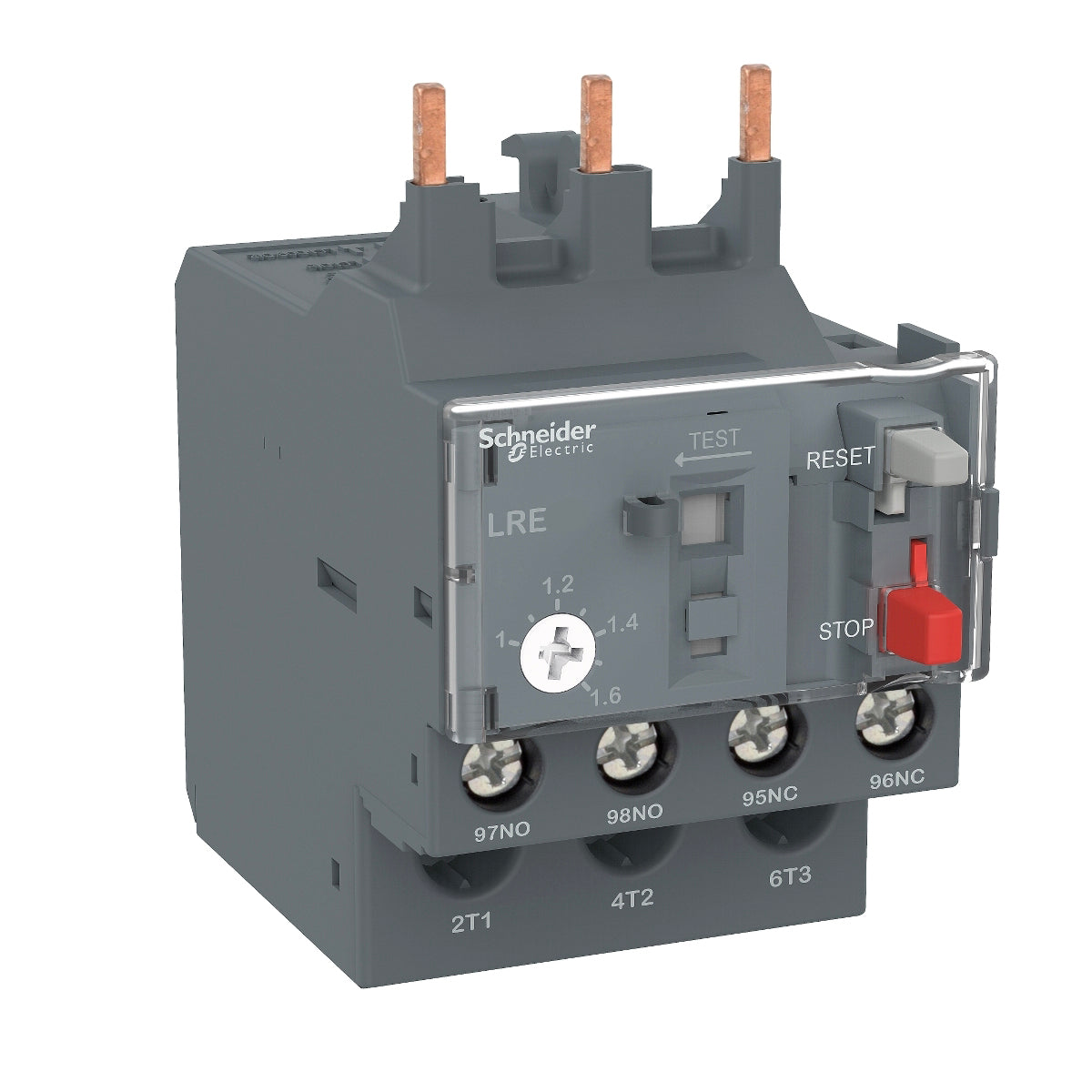

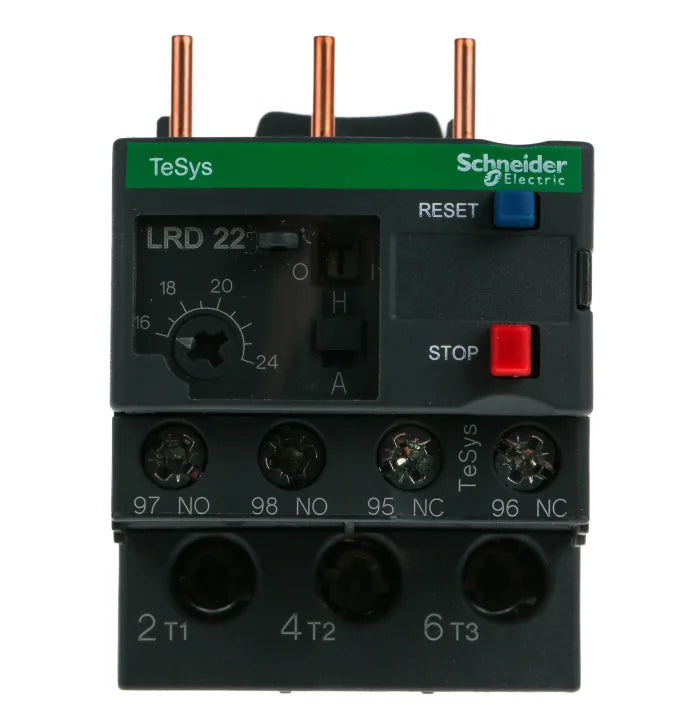

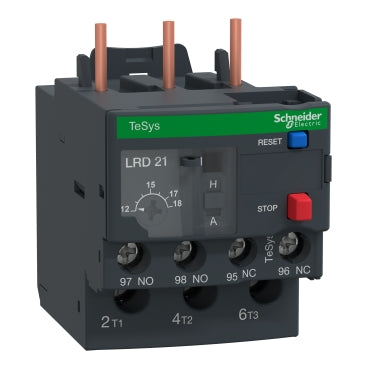

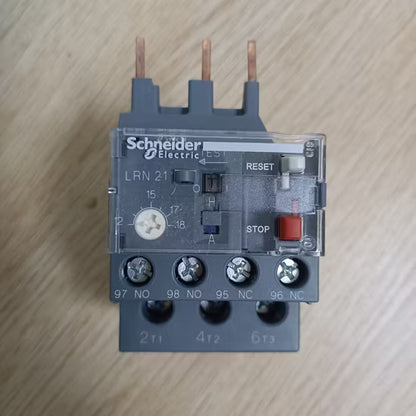

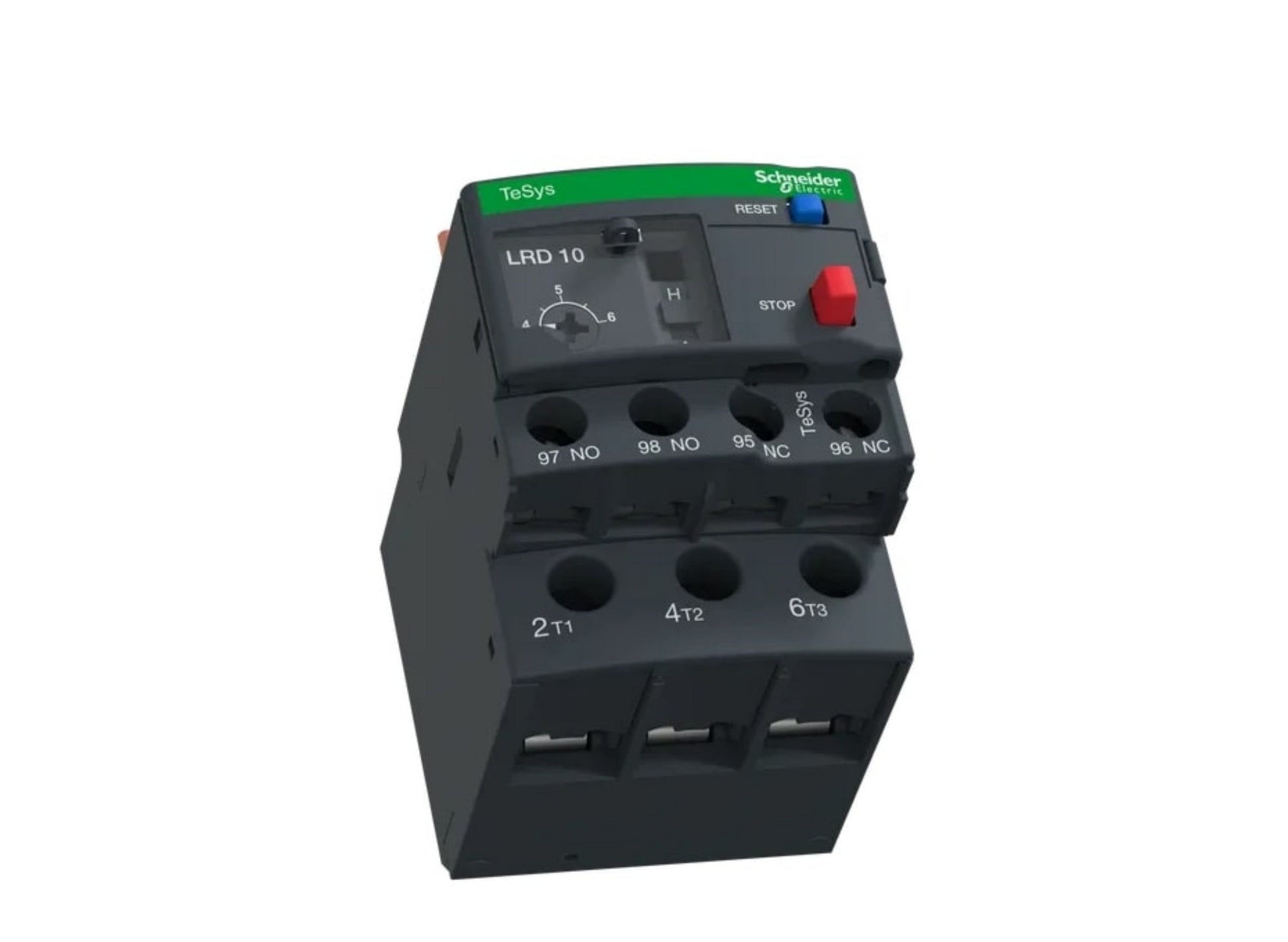

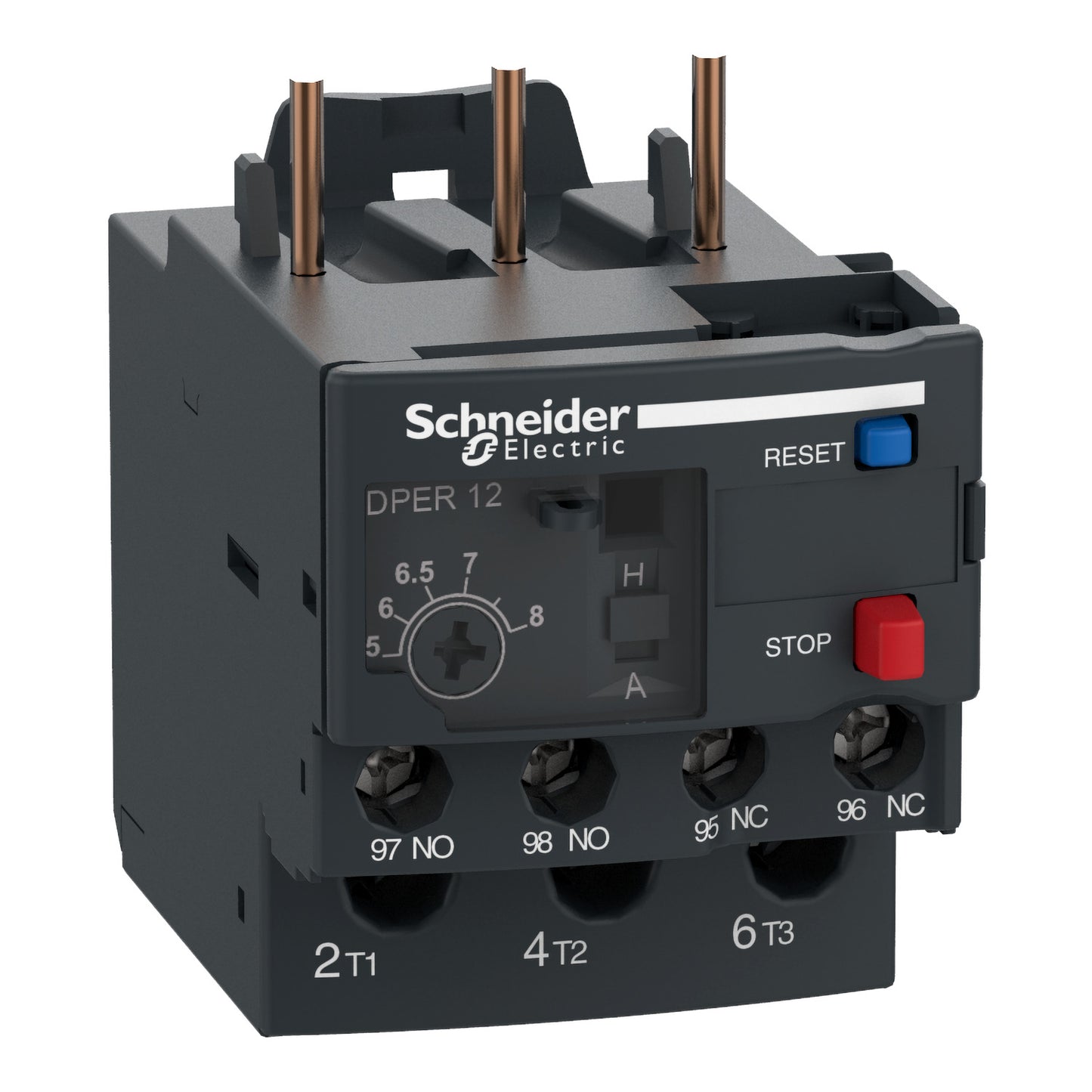

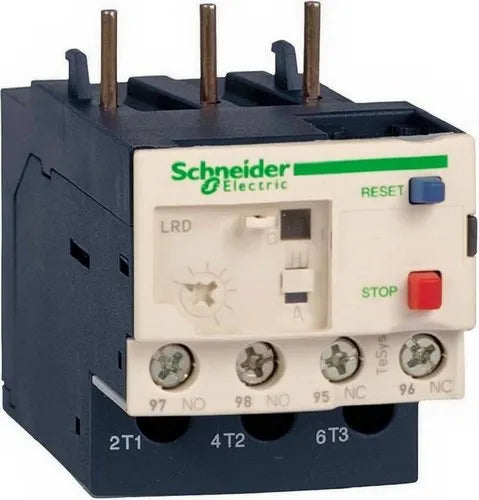

Schneider Thermal Overload Relay 24V DC

Schneider Electric's Thermal Overload Relays, such as the TeSys D series with model LAD703B, provide reliable motor protection against overload by monitoring motor current and tripping the circuit during overload conditions.

Key Features:

• Control Voltage: 24V DC (also compatible with 24V AC in many models) for remote electrical tripping and resetting.

• Mounting: Clip-on left-hand side mounting on compatible contactors.

• Operation: Detects excessive current due to motor overload and trips the motor circuit to prevent damage.

• Resetting: Electrical reset function with remote control capabilities, enhancing operational convenience.

• Protection: Protects motors against thermal overload, phase failure, and unbalanced currents.

• Adjustable Thermal Settings: Allows fine-tuning based on motor rated current.

• Compatibility: Designed to integrate seamlessly with Schneider Electric contactor ranges like TeSys D and others.

• Applications: Used widely in motor control panels, industrial automation, and machinery requiring reliable motor protection.

Operating Temperature Range: Typically -20°C to 60°C.
