Schneider Time Delay Relay 230V AC

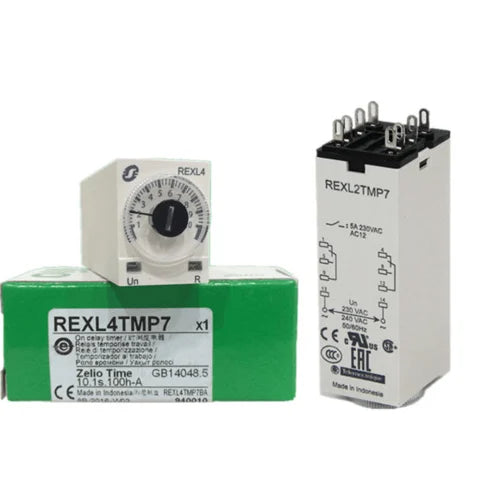

The Schneider Time Delay Relay 230V AC, specifically from the Harmony series like the REXL2TMP7 or REXL4TMP7 models, is a compact and versatile plug-in timer relay designed for industrial and automation applications. Key features include:

• Supply Voltage: 230V AC

• Function: On delay timer function (delays activation of output contacts)

• Time Range: Adjustable from 0.1 seconds to 100 hours depending on the model configuration, with fine increments in hours, minutes, and seconds

• Contact Configuration: Available with different contact forms such as DPDT (double pole double throw) or 4PDT (four pole double throw), supporting current ratings up to 5A at 240V AC

• Mounting: Plug-in socket terminal for easy installation and replacement

• Size: Compact design, for example, about 21mm wide for REXL2 series

• Operating Temperature: Typically from around -20°C to +60°C or -4°F to 140°F depending on the model

• Indications: LED status indicators for power and output to aid diagnostics

• Durability: Mechanical operating durability up to 10 million cycles and electrical durability up to 100,000 operations

• Protection: IP50 rated, some sealed models available for environmental protection
