Siemens SITOR Semiconductor Protection Fuses

Siemens SITOR semiconductor protection fuses are designed for ultra-fast, reliable protection of sensitive power electronics (such as diodes, thyristors, and IGBTs) against short circuits. The SITOR range includes different operational classes—aR (partial-range, back-up), gR (full-range), and gS (full range, dual-purpose)—all tailored for the high speed and low energy let-through demanded by semiconductor devices.

Technical Characteristics and Application Notes:

• Voltage Range: SITOR fuses are manufactured for AC voltages from 500V up to 1500V (with DC ratings available for many models).

• Current Ratings: Range from 1A (cylindrical) to 1600A (NH blade type).

• Breaking Capacity: High—typically 50–100 kA for SITOR, up to 200 kA for some heavy-duty models.

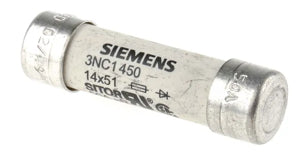

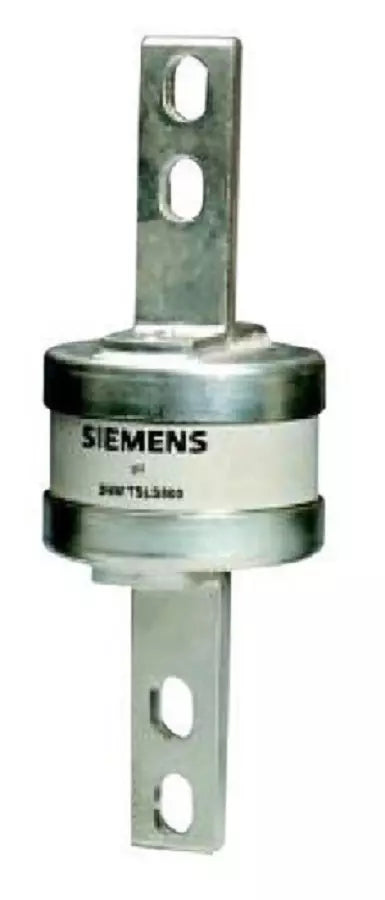

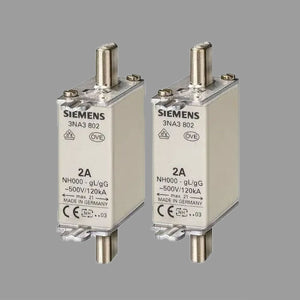

• Construction: Available in cylindrical (10x38 mm, 14x51 mm, 22x58 mm), NH blade, slotted blade, and bolt-on types for flexibility in installation.

• Usage: Protects semiconductors within drive systems, UPS units, softstarters, rectifiers, and inverters, where minimal I²t and extra-rapid disconnection is critical.

• Standards Compliance: Designed to IEC 60269, DIN VDE 0636-2, EN 60269-1, UL 4248-13, CSA standards.
